Description

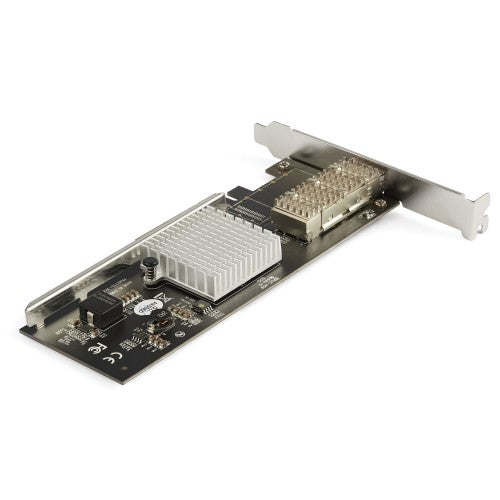

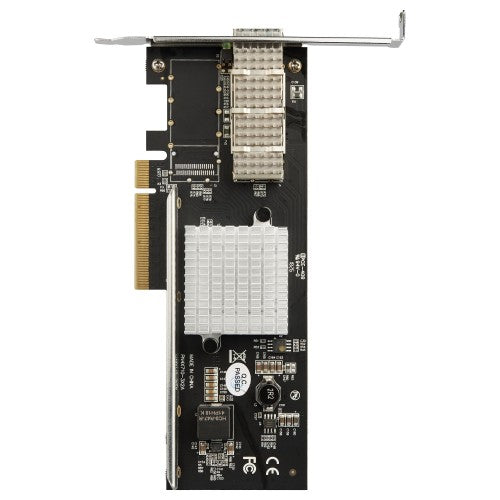

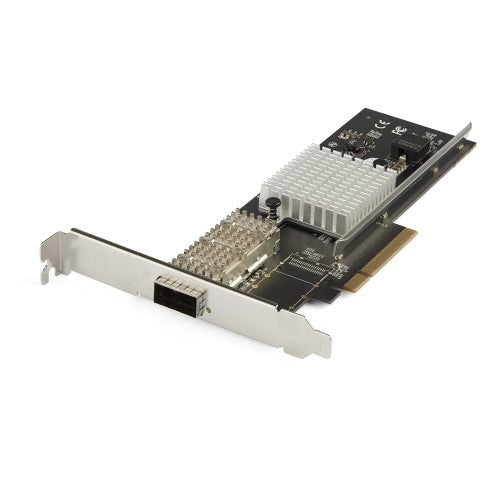

StarTech.com 1-Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant (PEX40GQSFPI)
Get fast, high-bandwidth connectivity with this QSFP+ server network card. The converged network adapter adds an open QSFP+ slot to your server or workstation. The 40Gb NIC features an Intel controller and provides reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.
Increase Your Network Speed
This QSFP+ server NIC lets you take advantage of the speed and stability of a 40 Gigabit Ethernet network, with data transfers of up to 40Gbps.
Add Scalable Network Connections

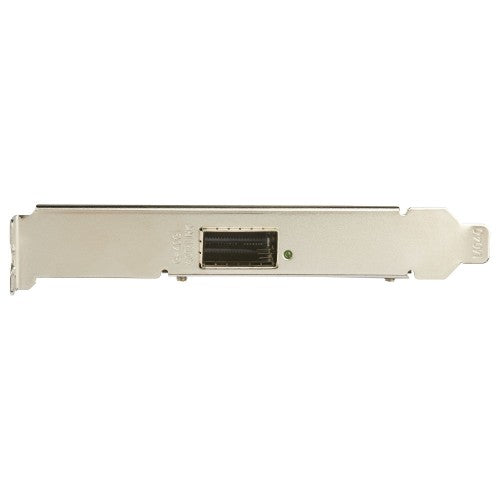

With an open QSFP+ slot, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance Your Network Capabilities
The 40Gb NIC uses an Intel XL710 chipset, providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

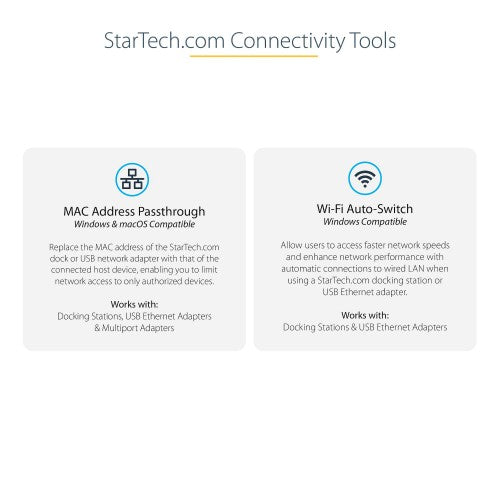

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The PEX40GQSFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- 40GbE QSFP+ NETWORK CARD: Converged network adapter provides high bandwidth to servers and workstations for demanding applications; SAN and iSCSI offload support
- TECH SPECS: 40 Gbps / Open QSFP+ Port, MSA Compliant / Intel XL710 Chip / MMF & SMF Fiber Support / PCIe 3.0 x8 / PXE Boot / 9K Jumbo Frames / VLAN / Full & low profile / 2 Yr Warr
- TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits validation tools to validate performance; Fiber LAN card compatible w/leading servers like Dell PowerEdge HPE ProLiant & Lenovo ThinkSystem
- FLEXIBLE: Use any MSA compliant QSFP+ module / direct attach cable (DAC) supporting different fiber types; 40GbE Network Interface Card works w/leading switch, router, & device brands like Cisco & HPE
- WIDE OS COMPATIBILITY: 40 Gigabit Ethernet NIC works w/Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions)
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities
Description
Converged Fiber NIC Adapter | PCIe | 40Gbps | 1x QSFP+ SlotGet fast, high-bandwidth connectivity with this QSFP+ server network card. The converged network adapter adds an open QSFP+ slot to your server or workstation. The 40Gb NIC features an Intel controller and provides reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.
Increase Your Network Speed
This QSFP+ server NIC lets you take advantage of the speed and stability of a 40 Gigabit Ethernet network, with data transfers of up to 40Gbps.
Add Scalable Network Connections
With an open QSFP+ slot, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance Your Network Capabilities
The 40Gb NIC uses an Intel XL710 chipset, providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The PEX40GQSFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber ports quantity | 1 |
| Fiber optic connector | QSFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 40000 Mbit/s |
| Network | |
| Chipset | Intel® XL710-BM1 |
| VLAN tagging | Yes |
| Jumbo frames | 9000 |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 40000 Mbit/s |
| Flow control support | Yes |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, RoHS |
| Design | |
| Product colour | Black |
| Chipset | Intel® XL710-BM1 |
| Internal | Yes |
| LED indicators | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 57 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 181 mm |
| Height | 20 mm |
| Weight | 112 g |
| Package width | 114 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 242 g |
| Packaging data | |

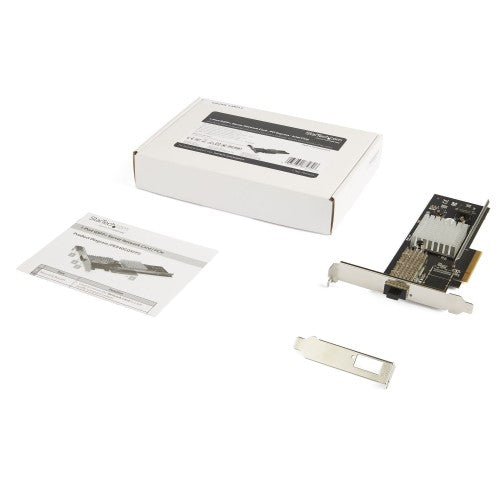

| Low-profile bracket | Yes |
| Package width | 114 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 242 g |
| Quick start guide | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Other features | |
| Chipset | Intel® XL710-BM1 |
| Jumbo frames | 9000 |
| Quick start guide | Yes |
| Flow control support | Yes |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Low-profile bracket | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 40 pc(s) |
| Harmonized System (HS) code | 85176990 |
