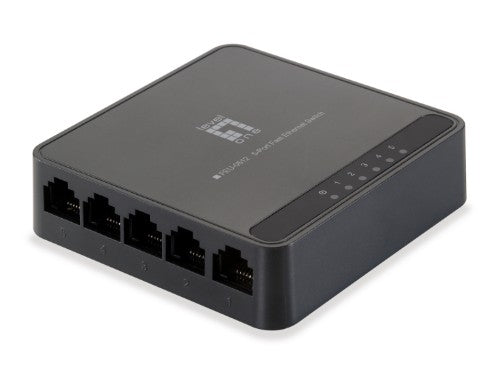

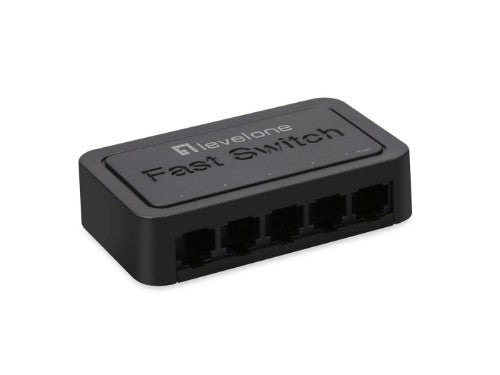

5-Port Fast Ethernet Switch
Key Features
- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Quick and easy installation
- Supports 1K MAC address auto-learning and auto-aging
- Simple Plug and Play installation
Description
The LevelOne FEU-0512 is a wire-speed, non-blocking networking device that provides 5 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity |
5 |
| Network |
|---|
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Half duplex |
Yes |
| Data transmission |
|---|
| Packet buffer memory |
0.744 MB |
| MAC address table |
1000 entries |
| Switching capacity |
1 Gbit/s |
| Design |
|---|
| Wall mountable |
No |
| Product colour |
Black |
| LED indicators |
Activity, Link, Power |
| Country of origin |
China |
| Performance |
|---|
| Fanless |
Yes |
| Packet buffer memory |
0.744 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| Power consumption (typical) |
1.3 W |
| Input current |
0.55 A |
| DC input voltage |
5 V |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
88.2 mm |
| Depth |
52.7 mm |
| Height |
21.8 mm |
| Weight |
47 g |
| Packaging content |
|---|
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Package type |
Box |
| Package width |
123 mm |
| Package depth |
80 mm |
| Package height |
83 mm |
| Package weight |
140 g |
| Quick start guide |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Product colour |
Black |
| Pallet gross width |
120 cm |
| Pallet gross length |
80 cm |
| Pallet height (air) |
147 cm |
| Master (outer) cases per pallet (air) |
24 pc(s) |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS, UKCA |
| Memory |
|---|
| Packet buffer memory |
0.744 MB |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS, UKCA |
| Indication |
|---|
| LED indicators |
Activity, Link, Power |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case width |
271 mm |
| Master (outer) case length |
430 mm |
| Master (outer) case height |
445 mm |
| Master (outer) case gross weight |
8 kg |
| Products per master (outer) case |
50 pc(s) |
