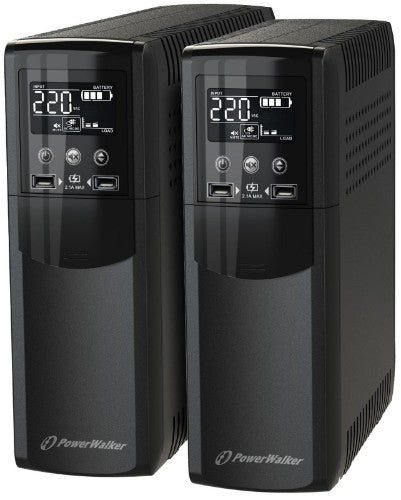

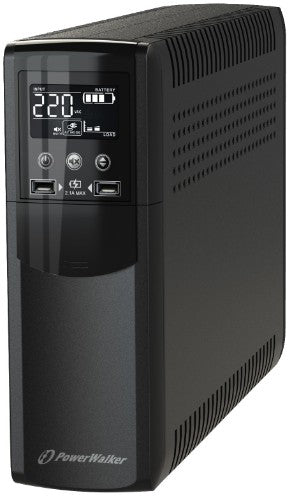

PowerWalker VI 1500 CSW uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 4 AC outlet(s)

Line-Interactive, 1500VA / 900W, 0.60, 170-280 VAC, 50Hz or 60Hz, 10ms, 45dB

Key Features

• Automatic Voltage Regulator with Pure Sine Wave output
• Human Interface Device (HID) compatible USB connection (no additional drivers needed)
• Easy user-replaceable battery design
• Two USB charging ports (2.1A) in front
• Auto dimming screen (UPS is woken up with single button click)

Description

PowerWalker VI CSW is a line-interactive UPS series with state of the art technology and design. The integrated AVR function and pure sinewave output ensures clean and stable output during power outages or voltage fluctuations. The UPS functions can be monitored and controlled via USB communication, either with a software or without (HID).

The modern and elegant design makes the VI CSW series especially suitable for home and office use. Applications include (but are not limited to) gaming and entertainment systems, office workstations, NAS etc.

Two USB charging ports (2.1A) in the front offers additional functionality and convenience. Furthermore, the design allows easy access to the battery compartment via the front panel for easy battery replacement.

Specifications

Power
Output voltage regulation	±10%
Output frequency regulation	±1 Hz
Output power	900 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Efficiency	98.4%
Emergency Power Off (EPO)	Yes
Power factor	0.6
Output power capacity	1.5 kVA
Charging current	2.1 A
Performance
UPS topology	Line-Interactive
Waveform	Sine
Response time	10 ms
Noise level	45 dB
Features
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	±10%
Output frequency regulation	±1 Hz
Response time	10 ms
Output power	900 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Efficiency	98.4%
Emergency Power Off (EPO)	Yes
Power factor	0.6
Noise level	45 dB
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Charging current	2.1 A
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface type	RJ-45
Number of type F outputs	4
AC outlets quantity	4 AC outlet(s)
AC outlet types	Type F
Serial ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Number of battery cells	2
Battery recharge time	8 h
Charging current	2.1 A
Design
Form factor	Tower
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Package width	188 mm
Package depth	500 mm
Package height	387 mm
Weight	13.1 kg
Width	99 mm
Package weight	13.1 kg
Height	280 mm
Depth	410 mm
Packaging data
Cables included	USB cable
Manual	Yes
Package width	188 mm
Package depth	500 mm
Package height	387 mm
Package weight	13.1 kg
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Cables included	USB cable
Manual	Yes
