Description
Line-Interactive, 3000VA / 2100W, 162-290 VAC, 208/220/230/240 VAC, 10ms, 1.4A, 45dB
The programmable outlets and comprehensive LCD display present a high degree of functionality and flexibility that are rarely found in other line-interactive solutions. Additionally this series offers a variety of communication options, such as USB communication with software or without software (HID), or even communication via an optional network card (SMNP).
Key Features
- Automatic Voltage Regulator with Pure Sine Wave output
- USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
- Programmable outlets
- Advanced ECO Mode
Description
PowerWalker VI 1100-3000 CW is an advanced line-interactive UPS series with pure sine wave output. Combined with the AVR function for voltage stabilization, this UPS series will provide clean and stable power to the connected equipment. While designed for home and office use, this UPS will also safeguard more sensitive IT and network devices, as well as high-end PC systems.The programmable outlets and comprehensive LCD display present a high degree of functionality and flexibility that are rarely found in other line-interactive solutions. Additionally this series offers a variety of communication options, such as USB communication with software or without software (HID), or even communication via an optional network card (SMNP).
Specifications
| Power | |
|---|---|
| Output frequency regulation | ±1 Hz |
| Output power | 2100 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 1.4 A |
| Efficiency | 96% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.7 |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 88% |
| Charging current | 1.4 A |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Response time | 10 ms |
| LED indicators | Battery replacement, Fault |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output frequency regulation | ±1 Hz |
| Response time | 10 ms |
| Output power | 2100 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 1.4 A |
| Efficiency | 96% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.7 |
| Noise level | 45 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 88% |
| Input frequency | 50/60 Hz |
| Charging current | 1.4 A |

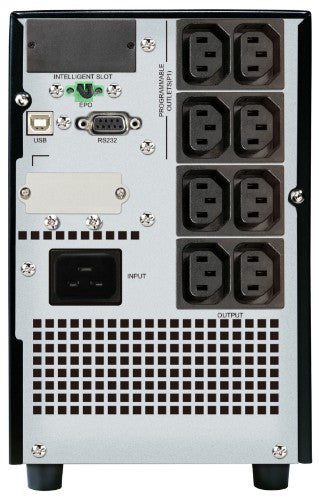

| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | Type F |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Number of battery cells | 4 |
| Battery recharge time | 4 h |
| Typical backup time at half load | 9 min |
| Typical backup time at full load | 2.3 min |
| Charging current | 1.4 A |
| Design | |
| Form factor | Tower |
| LED indicators | Battery replacement, Fault |
| Product colour | Black |

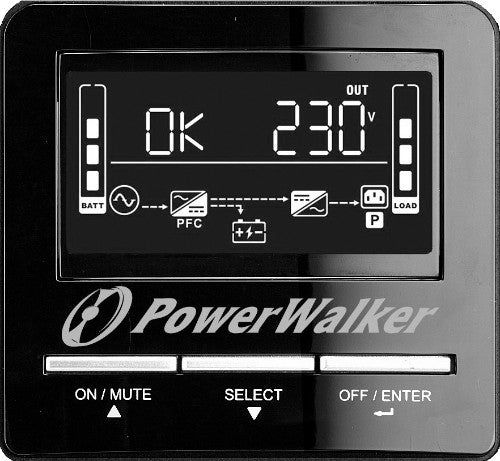

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Package width | 235 mm |
| Package depth | 540 mm |
| Package height | 325 mm |
| Weight | 22.3 kg |
| Width | 145 mm |
| Package weight | 22.3 kg |
| Height | 220 mm |
| Depth | 455 mm |
| Packaging data | |
| Manual | Yes |
| Package width | 235 mm |
| Package depth | 540 mm |
| Package height | 325 mm |
| Package weight | 22.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
