Description

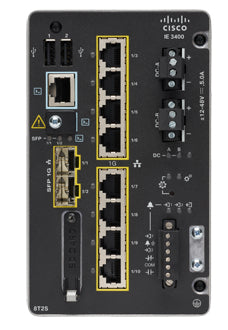

L2, 8xRJ-45, 2xSFP, Gigabit Ethernet, 8K MAC, 9.6-60V, 6.3A, 36W, 152.4x15.6x91.4mm, 1.72kg, Black
Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.
Modular, versatile switch design
The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.
Compact form factor for rugged switch use cases
Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.
Fast speed, all Gigabit Ethernet
Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.
Open extensible platform with IOS XE
Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.
Extend intent-based networking to the IoT edge
With Cisco’s highly scalable, flexible, secure and easy-to-deploy industrial IoT platforms - improve uptime, lower operating costs and future-proof your investments.
Description
Advanced features support for digital transformationCisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.
Modular, versatile switch design
The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.
Compact form factor for rugged switch use cases
Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.
Fast speed, all Gigabit Ethernet
Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.
Open extensible platform with IOS XE
Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.
Extend intent-based networking to the IoT edge
With Cisco’s highly scalable, flexible, secure and easy-to-deploy industrial IoT platforms - improve uptime, lower operating costs and future-proof your investments.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | 802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compatible memory cards | SD |
| USB 2.0 ports quantity | 3 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | Mini USB-B/RS-232 |
| Network | |
| IGMP snooping | Yes |
| IGMP entries | 1000 |
| Access Control List (ACL) IPv6 entries | 512 |
| Access Control List (ACL) IPv4 entries | 2000 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Number of VLANs | 256 |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| IPv4 & IPv6 features | |
| Access Control List (ACL) IPv6 entries | 512 |
| Access Control List (ACL) IPv4 entries | 2000 |
| Optical fiber | |
| Fiber optic connector | SFP |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 549808 h |
| Rack mounting | Yes |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN |
| Security algorithms | 802.1x RADIUS, SNMPv3, SSH |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 1000 |
| Access Control List (ACL) IPv6 entries | 512 |
| Access Control List (ACL) IPv4 entries | 2000 |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386, CISPR 24, EN 55024, KN 35, EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV), EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP), EN 61000-4-4 Electromagnetic Fast Transients (4kV), EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP), EN 61000-4-6 Conducted RF (10Vrms UTP), EN 61000-4-8 Power Frequency Magnetic Field (1000A/m), EN 61000-4-10 Pulsed Magnetic Field (30 A/m), EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec), EN 61000-4-17 Ripple Immunity DC Power (10%), EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz), EN-61000-4-29 DC Voltage Dips and Interruptions, EN 61000-6-2 Industrial Immunity, EN 61000-6-4 Industrial Emissions, EN 61000-6-1 Light Industrial Immunity, EN 61326-1 Measurement, Control and Laboratory Equipment, IEEE 1613 Electric Power Stations Communications Networking2, EN/IEC 61850 -3 Electric Substations Communications Networking2, EN50121-4 Railway – Signaling and Telecommunications Apparatus, ODVA Industrial EtherNet/IP, IP30, Information Technology Equipment:, UL/CSA 60950-1, CB to IEC 60950-1 with all country deviations, UL/CSA 62368-1, CB to IEC 62368-1 with all country deviations2, Industrial floor (control equipment):, UL/CSA 61010-2-201, CB report and certificate to IEC/EN 61010-2-201, Hazardous Locations, UL121201(Class l, Div 2, groups A-D), CSA 213 (Class l, Div 2, groups A-D), UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC), IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC), EN 60079-0, -15 ATEX certifícate (Class l, Zone 2, Gc/IIC) cabinet enclosure required, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-52, IEC 60068-2-60 |
| Memory | |
| Internal memory | 4000 MB |
| Flash memory | 1500 MB |
| Design | |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Certification | FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386, CISPR 24, EN 55024, KN 35, EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV), EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP), EN 61000-4-4 Electromagnetic Fast Transients (4kV), EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP), EN 61000-4-6 Conducted RF (10Vrms UTP), EN 61000-4-8 Power Frequency Magnetic Field (1000A/m), EN 61000-4-10 Pulsed Magnetic Field (30 A/m), EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec), EN 61000-4-17 Ripple Immunity DC Power (10%), EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz), EN-61000-4-29 DC Voltage Dips and Interruptions, EN 61000-6-2 Industrial Immunity, EN 61000-6-4 Industrial Emissions, EN 61000-6-1 Light Industrial Immunity, EN 61326-1 Measurement, Control and Laboratory Equipment, IEEE 1613 Electric Power Stations Communications Networking2, EN/IEC 61850 -3 Electric Substations Communications Networking2, EN50121-4 Railway – Signaling and Telecommunications Apparatus, ODVA Industrial EtherNet/IP, IP30, Information Technology Equipment:, UL/CSA 60950-1, CB to IEC 60950-1 with all country deviations, UL/CSA 62368-1, CB to IEC 62368-1 with all country deviations2, Industrial floor (control equipment):, UL/CSA 61010-2-201, CB report and certificate to IEC/EN 61010-2-201, Hazardous Locations, UL121201(Class l, Div 2, groups A-D), CSA 213 (Class l, Div 2, groups A-D), UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC), IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC), EN 60079-0, -15 ATEX certifícate (Class l, Zone 2, Gc/IIC) cabinet enclosure required, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-52, IEC 60068-2-60 |
| Rack mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 549808 h |
| Internal memory | 4000 MB |
| Flash memory | 1500 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (typical) | 36 W |
| Input current | 6.3 A |
| DC input voltage | 9.6 - 60 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 0 - 4572 m |
| Weight & dimensions | |
| Width | 152.4 mm |
| Depth | 134.6 mm |
| Height | 91.4 mm |
| Weight | 1.72 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
