Description
4K HDMI Extender Set over IP/CAT 5, 6 (120 m) complete PoE powered, UHD 4K@30Hz
- Extends 4K video content up to 120 m with a CAT 6 cable (point-to-point connection)
- Extension of the HDMI signal (unlimited distance) via the existing local network infrastructure or using additional PoE switches (IP connection)
- Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display your video content on up to 253 screens (point-to-multipoint connection)
- Complete power supply via PoE switch - no external power supply units required
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- Supports 4K (30Hz), 3840x2160p resolution

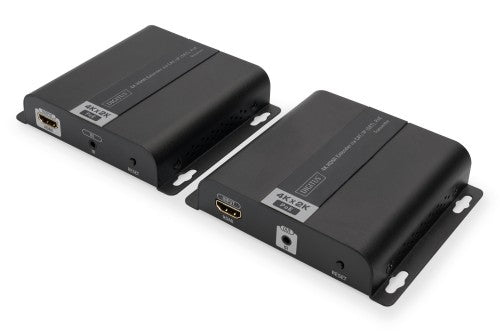

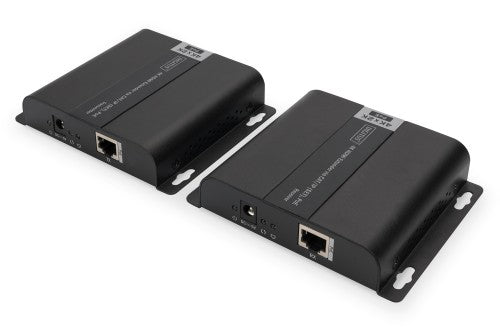

The 4K HDMI extender set (DS-55124) consists of a transmitter and receiver unit. Both do not require external power supply units; power is supplied via an additional PoE switch. When using additional PoE switches or the existing infrastructure, the HDMI signal can be extended to an unlimited distance (IP connection). Using additional receiver units (DS-55125), your video content can be distributed to up to 253 screens using your existing network infrastructure or additional PoE switches (point-to-multipoint connection). With a simple point-to-point connection (requires power supply unit), your 4K video content can be displayed over a distance of up to 120 m. Place your displays, TV flexibly at any location, regardless of the output source.
Key Features
- Extension of the HDMI signal (unlimited distance) via the existing local network infrastructure or using additional PoE switches (IP connection)
- Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display your video content on up to 253 screens (point-to-multipoint connection)
- Complete power supply via PoE switch - no external power supply units required
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- Supports 4K (30Hz), 3840x2160p resolution
- HDMI bandwidth: 10.2 Gbit / s (max.)
- HDMI version: 1.4
- HDCP version: 1.4
- Integrated IR interface - simple remote control of the input source
- Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
- Supports HDTV
- Supports Deep Color (24 bit)
- Supports uncompressed audio signals such as LPCM
- Operating temperature: 0°C - 60°C
- Metal housing
- Suitable for wall mounting
- Compact size, easy handling and installation
- Compression: H.264
- Dimensions (1x unit): L 11.9 x W 9.4 x H 2.4 cm
- Color: Black
Description
Complete power supply via PoE switch - no external power supply units required- Extends 4K video content up to 120 m with a CAT 6 cable (point-to-point connection)
- Extension of the HDMI signal (unlimited distance) via the existing local network infrastructure or using additional PoE switches (IP connection)
- Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display your video content on up to 253 screens (point-to-multipoint connection)
- Complete power supply via PoE switch - no external power supply units required
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- Supports 4K (30Hz), 3840x2160p resolution
The 4K HDMI extender set (DS-55124) consists of a transmitter and receiver unit. Both do not require external power supply units; power is supplied via an additional PoE switch. When using additional PoE switches or the existing infrastructure, the HDMI signal can be extended to an unlimited distance (IP connection). Using additional receiver units (DS-55125), your video content can be distributed to up to 253 screens using your existing network infrastructure or additional PoE switches (point-to-multipoint connection). With a simple point-to-point connection (requires power supply unit), your 4K video content can be displayed over a distance of up to 120 m. Place your displays, TV flexibly at any location, regardless of the output source.
Specifications
| Features | |
|---|---|
| Material | Metal |
| Colour depth | 24 bit |
| Wall mountable | Yes |
| Audio formats supported | LPCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| HDCP version | 1.4 |
| Technical details | |
| Material | Metal |
| Colour depth | 24 bit |
| Wall mountable | Yes |
| Audio formats supported | LPCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Country of origin | China |
| Package volume | 3379.2 cm³ |

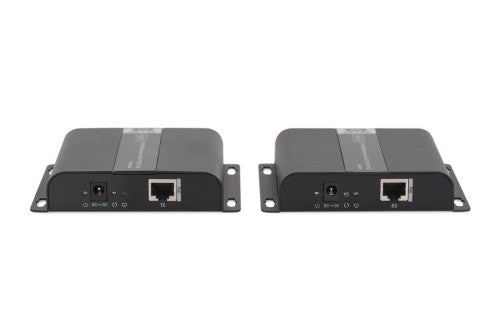

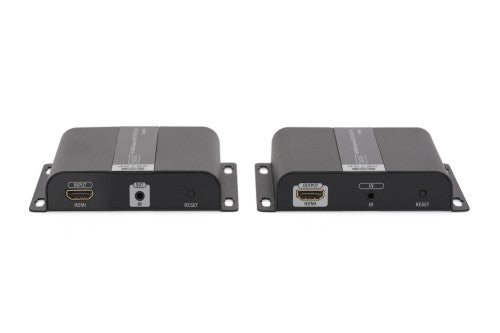

| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Operating voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 94 mm |
| Package depth | 240 mm |
| Height | 24 mm |
| Depth | 119 mm |
| Package width | 176 mm |
| Package height | 80 mm |
| Weight | 280 g |
| Package weight | 850 g |
| Packaging data | |
| Package depth | 240 mm |
| Package width | 176 mm |
| Package height | 80 mm |
| Package weight | 850 g |
| Packaging content | |
| IR receiver included | Yes |
| IR blaster included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 270 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 420 mm |
| Master (outer) case gross weight | 8.5 kg |
| Master (outer) case volume | 43092 cm³ |
| Products per master (outer) case | 10 pc(s) |
| UK Trade Tariff code | 85176200 |
