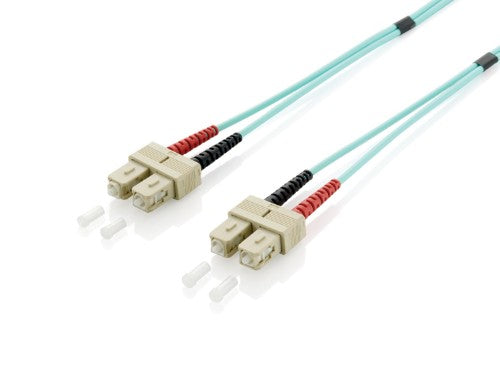

SC / SC, OM3, 50/125μm, LSZH/LSOH, 30 m
Key Features
- Connector: Ceramic Ferrule
- Cable Spec: I-VH 2 x 1G
- OM3 = 50/125mμ
- Duplex multi-mode fiber optic cable
- Each cable includes a measure protocol
- Cable jacket color: Turquoise
- Low Smoke Zero Halogen (LSZH/LSOH)
Description
The equip®Fiber Optic Patch Cord is made of superior materials to ensure an insertion loss, return loss, and endface geometry connection. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
SC |
| Connector 2 |
SC |
| Cable length |
30 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Features |
|---|
| Fibre optic type |
OM3 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
SC |
| Connector 2 |
SC |
| Cable length |
30 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Turquoise |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Weight & dimensions |
|---|
| Cable length |
30 m |
| Package weight |
0 g |
| Packaging data |
|---|
| Package weight |
0 g |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
| Quantity per pack |
1 pc(s) |
