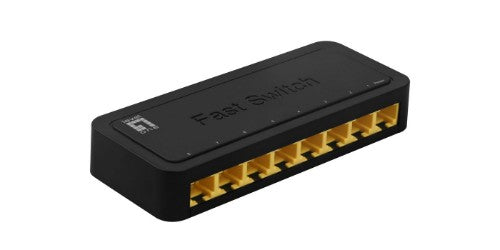

8-Port Fast Ethernet Switch
Key Features
- Provides flexibility of 8 x 10/100BASE-TX ports
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Quick and easy installation
- Supports 1K MAC address auto-learning and auto-aging
- Simple Plug and Play installation
Description
The LevelOne FEU-0812 is a wire-speed, non-blocking networking device that provides 8 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Power connector |
DC-in jack |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
| Network |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Half duplex |
Yes |
| Data transmission |
|---|
| Packet buffer memory |
1.19 MB |
| MAC address table |
1000 entries |
| Design |
|---|
| Product colour |
Black |
| Stackable |
No |
| LED indicators |
Activity, Link, Power |
| Rack mounting |
No |
| Country of origin |
China |
| Certification |
CE
RoHS |
| Performance |
|---|
| Plug and Play |
Yes |
| Fanless |
Yes |
| Packet buffer memory |
1.19 MB |
| Stackable |
No |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power supply included |
Yes |
| Power consumption (typical) |
1.7 W |
| Input current |
0.55 A |
| DC input voltage |
5 V |
| Power source |
DC |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
130.7 mm |
| Depth |
52.3 mm |
| Height |
20 mm |
| Weight |
110 g |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Package type |
Box |
| Package width |
145 mm |
| Package depth |
80 mm |
| Package height |
80 mm |
| Package weight |
214 g |
| Technical details |
|---|
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Memory |
|---|
| Packet buffer memory |
1.19 MB |
| Certificates |
|---|
| Certification |
CE
RoHS |
| Indication |
|---|
| LED indicators |
Activity, Link, Power |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
85176990 |
