Axis 01742-001 security camera accessory Mount

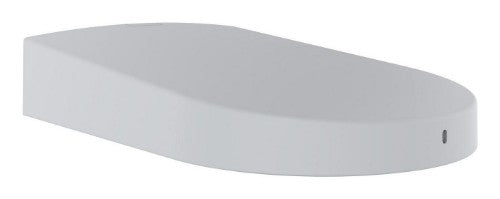

TM3101 PENDANT WALL MOUNT

Key Features

• Available in white and black models; Compartment for microphone and connectivity devices; Concealed cabling and mounting screws; Contemporary design, becomes one with the wall; Mount on walls, counter tops, and ceilings

Description

AXIS TM3101 Pendant Wall Mounts allow a clean, pendant-style mounting of Axis mini fixed dome cameras. The concealed mounting makes it blend in with the wall. Choose between white or black. It’s compatible with a wide range of Axis products. The compartment allows for secure storage of connectivity devices, and even a microphone. This compact mount is helpful to position the camera exactly where you need it, such as for installations above shop fronts with Axis retail analytics, such as people counting and face recognition.

Specifications

Features
Housing material	Acrylonitrile butadiene styrene (ABS)
Brand compatibility	Axis
Compatibility	M3044-V, M3044-WV, M3045-V, M3045-WV, M3046-V, M3047-P, M3048-P, M3104-L, M3104-LVE, M3105-L, M3105-LVE, M3106-L Mk II, M3106-LVE Mk II, M4206-LV, M4206-V, P3904-R Mk II, P3905-R Mk II, P3915-R Mk II
Type	Mount
Placement supported	Indoor
Product colour	White
Cable routing	Internal
Maximum weight capacity	1.5 kg
Ergonomics
Maximum weight capacity	1.5 kg
Technical details
Compatibility	M3044-V, M3044-WV, M3045-V, M3045-WV, M3046-V, M3047-P, M3048-P, M3104-L, M3104-LVE, M3105-L, M3105-LVE, M3106-L Mk II, M3106-LVE Mk II, M4206-LV, M4206-V, P3904-R Mk II, P3905-R Mk II, P3915-R Mk II
Type	Mount
Placement supported	Indoor
Maximum weight capacity	1.5 kg
Cable routing	Internal
Harmonized System (HS) code	85299020
Weight & dimensions
Width	124 mm
Weight	159 g
Height	39 mm
Depth	175 mm
Colour
Product colour	White
Packaging content
Mounting kit	Yes
Quick installation guide	Yes
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	-10 - 50 °C
Logistics data
Harmonized System (HS) code	85299020
