Description
240Mbps, MIMO, 5.1-5.8 GHz, 26 dBm, 14 dBi, RJ-45, PoE, 179x120x45mm, pre-configured
It can be used in a Point to Point or Point to MultiPoint system.
Nominated in 2012 for 'Security Product of the Year'. The SIL MICRO 240 has a high MTBF and robust design. It has all the features of the SIL MICRO and is available in standard white with other colours available on special order.
Key Features
- Point-to-Point Outdoor Wireless Bridge Up to 2KM
- Point-to-MultiPoint Client
- up to 240Mbps throughput
- Integrated 15dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (Transmit Power Control)
- PoE 802.3af
- Software upgradable to 500Mbps
Description

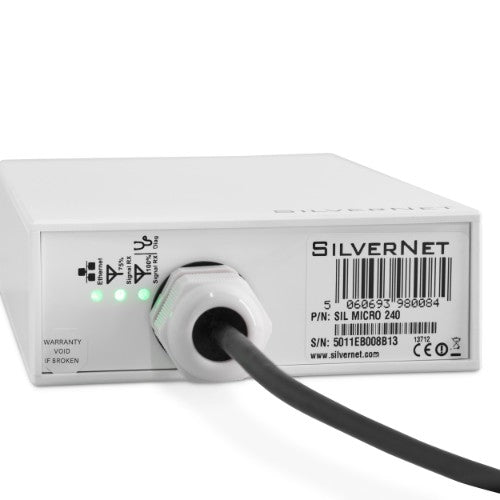

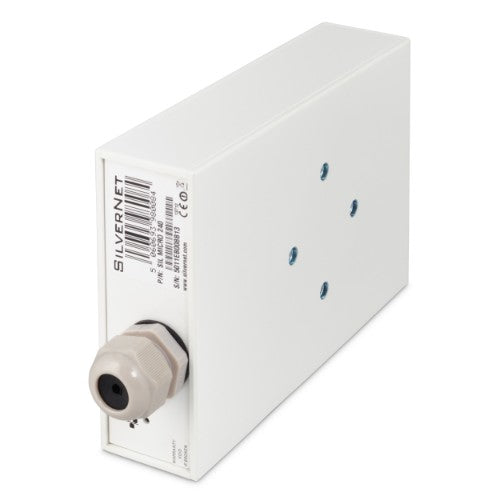

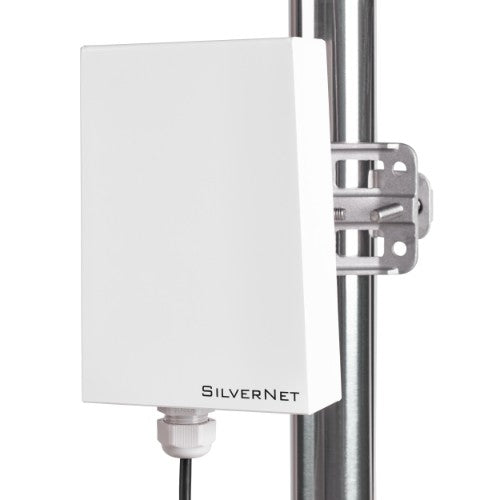

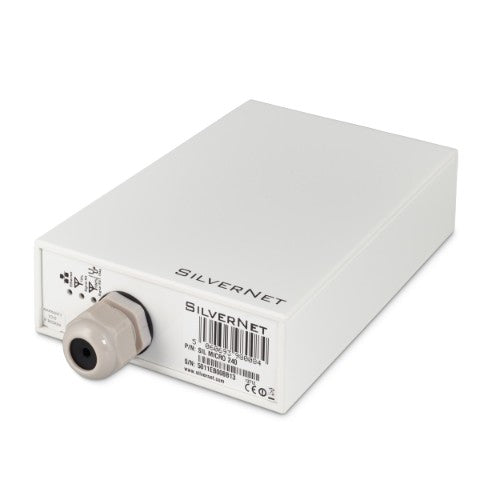

The SIL MICRO 240 is a single 2km radio capable of 240Mbps throughput.It can be used in a Point to Point or Point to MultiPoint system.
Nominated in 2012 for 'Security Product of the Year'. The SIL MICRO 240 has a high MTBF and robust design. It has all the features of the SIL MICRO and is available in standard white with other colours available on special order.
Specifications
| Data transmission | |
|---|---|
| Supported data transfer rates | 240Mbps |
| Maximum data transfer rate | 240 Mbit/s |
| Maximum transfer distance | 2000 m |
| Antenna | |
| Antennas quantity | 1 |
| Antenna gain level (max) | 14 dBi |
| Pan/tilt-axis range | 180° |
| Antenna design | Internal |
| Wireless LAN features | |
| Transmission gain | 0 - 14 dB |
| Signal strength | -40 dBm |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Outdoor range | 2000m |
| Frequency band | 5.1 - 5.8 GHz |
| Indoor range | 2000m |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Antenna gain level (max) | 14 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Output power (dBm) | 26 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static IP | Yes |
| Dynamic IP | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Outdoor range | 2000m |
| Frequency band | 5.1 - 5.8 GHz |
| Supported data transfer rates | 240Mbps |
| Channels quantity | 25 channels |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security | |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMPv2, SSH |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| LED indicators | LAN, Signal strength |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Reset button | Yes |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| International Protection (IP) code | IP67 |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 60000 h |
| LED indicators | LAN, Signal strength |
| Country of origin | United Kingdom |
| Remote control function | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| AC input voltage | 100-240 V |
| Power plug type | Type G |
| Power consumption (max) | 16 W |
| Power source type | DC, PoE |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -4 - 158 °F |
| Endurance | |
| Mean time between failures (MTBF) | 60000 h |
| Certificates | |
| Certification | CE, FCC |
| Technical details | |
| Product colour | White |
| Wall mountable | Yes |
| Operating temperature (T-T) | -4 - 158 °F |
| Quantity per pack | 1 pc(s) |
| Country of origin | United Kingdom |
| Weight & dimensions | |
| Weight | 500 g |
| Width | 179 mm |
| Depth | 120 mm |
| Height | 45 mm |
| Antenna diameter | 20.5 cm |
| Packaging content | |
| Quick installation guide | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Antenna included | Yes |
| Power supply included | Yes |

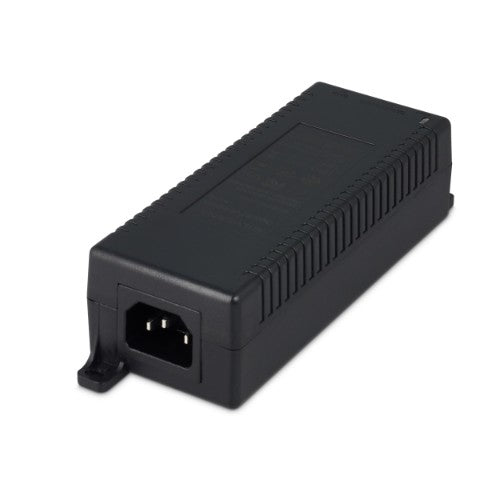

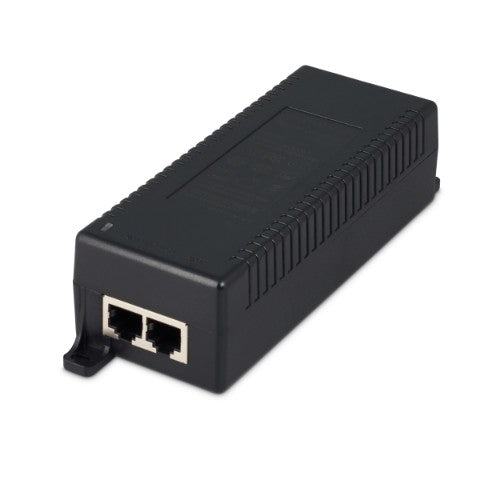

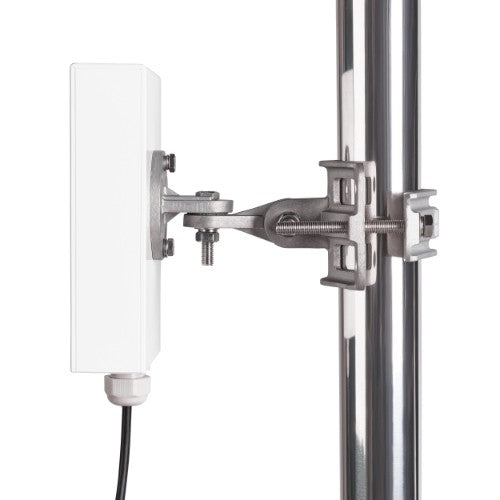

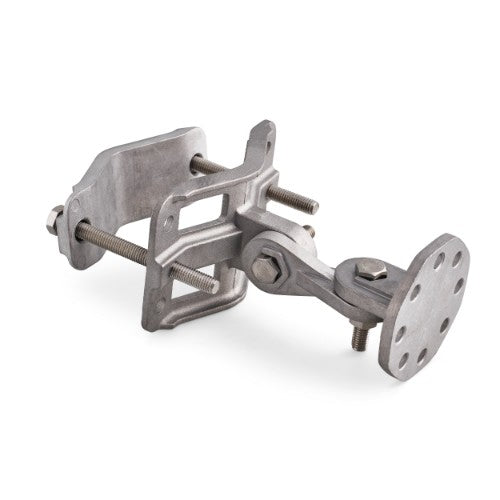

| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Packaging data | |
| Package width | 130 mm |
| Package weight | 1.42 kg |
| Package type | Box |
| Package height | 100 mm |
| Package depth | 300 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
