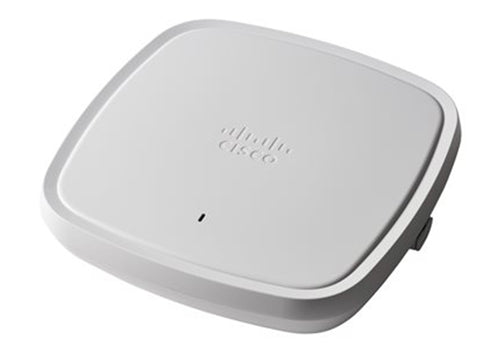

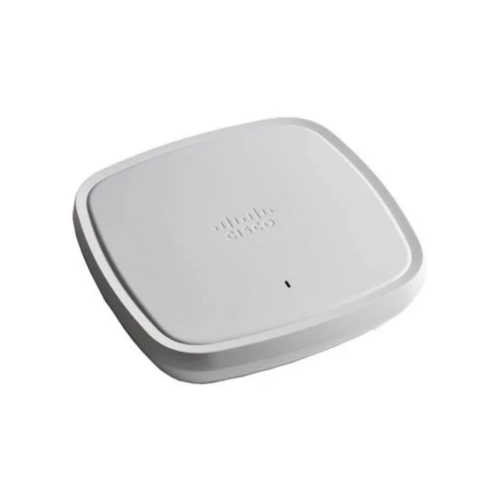

Catalyst 9120AXI-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, CleanAir with RF ASIC, MU-MIMO, PoE, Internal antenna (C9120AXI-E)
Key Features
- POWERFUL Wi-Fi 6 PERFORMANCE: 4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee
- CISCO CLEANAIR: Powered by Cisco RF ASIC, offer superior analytics and security
- ECOSYSTEM: End-point interoperability and optimised performance on Apple and Samsung devices
- EMBEDDED WIRELESS CONTROLLER: Controller functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only)
- PEACE OF MIND: 90-day software and limited lifetime hardware warranty
Description
The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
2500 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Country of origin |
Mexico |
| Networking standards |
IEEE 802.11ac |
| Ethernet LAN data rates |
2500 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Network |
|---|
| Networking standards |
IEEE 802.11ac |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Networking standards |
IEEE 802.11ac |
| Ethernet LAN data rates |
2500 Mbit/s |
| Maximal-Ratio Combining (MRC) |
Yes |
| Cyclic Shift Diversity (CSD) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power plug type |
Type C |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Placement |
In-wall |
| Country of origin |
Mexico |
| Product colour |
Grey |
| Antenna |
|---|
| Antenna type |
Internal |
| Technical details |
|---|
| Products per shipping (inner) case |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Software |
|---|
| Maximal-Ratio Combining (MRC) |
Yes |
| Cyclic Shift Diversity (CSD) |
Yes |
| Weight & dimensions |
|---|
| Width |
216 mm |
| Depth |
216 mm |
| Height |
43 mm |
| Package width |
244.6 mm |
| Package depth |
263.7 mm |
| Package height |
90.4 mm |
| Package weight |
1.59 kg |
| Packaging data |
|---|
| Package width |
244.6 mm |
| Package depth |
263.7 mm |
| Package height |
90.4 mm |
| Package weight |
1.59 kg |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Logistics data |
|---|
| Country of origin |
Mexico |
| Products per master (outer) case |
1 pc(s) |
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
