Description

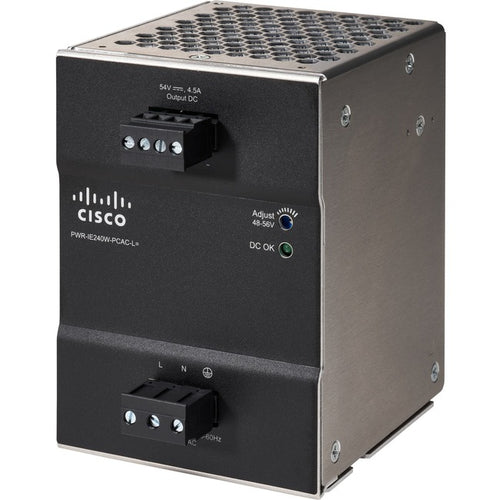

240W AC to DC power supply
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40°C and +85°C
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
Description
The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco’s industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:- Power supply options from 50W to 480W
- Operating temperatures ranging between -40°C and +85°C
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
Specifications
| Features | |
|---|---|
| Product type | Power supply |
| Internal | Yes |
| Safety | IP20 |
| Mean time between failures (MTBF) | 1058750 h |
| Product colour | Black |
| Certification | SIQ Bauart to EN 60950-1 UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2 No. 62368-1 CB IEC 60950-1 UL 508 /CSA C22.2 No. 107.1-01 (File No. E315355) CSA C22.2 No. 107.1-01 (File No. 181564) EN 61000-3-2 A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, A CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A |
| Harmonized System (HS) code | 85177900 |
| Colour | |
| Product colour | Black |
| Technical details | |
| Internal | Yes |
| Mean time between failures (MTBF) | 1058750 h |
| Height | 124.1 mm |
| Power | |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 / 60 Hz |
| Total power | 240 W |
| Maximum current | 3.5 A |
| Inrush current | 35 A |
| DC output voltage | 54 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 960 g |
| Height | 124.1 mm |
| Width | 85 mm |
| Depth | 121 mm |
| Certificates | |
| Safety | IP20 |
| Certification | SIQ Bauart to EN 60950-1 UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2 No. 62368-1 CB IEC 60950-1 UL 508 /CSA C22.2 No. 107.1-01 (File No. E315355) CSA C22.2 No. 107.1-01 (File No. 181564) EN 61000-3-2 A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, A CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A |
| Logistics data | |
| Harmonized System (HS) code | 85177900 |
