Description
720x576px, 30fps, 512 MB Flash, 650g
Key Features
- Extended capacity for analytics; Full frame rate in all resolutions; PoE and PTZ support; Signed firmware and secure boot; Zipstream with support for H.264/H.265
Description

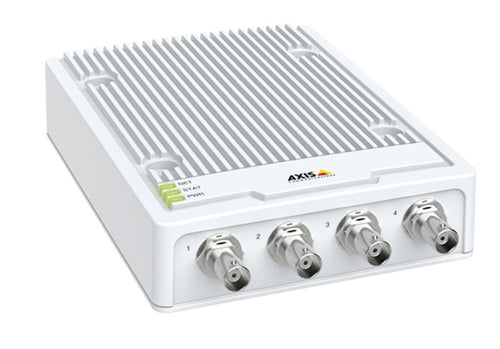

AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422. The encoder features a memory card slot for edge storage and support for intelligent analytics such as motion detection and active tampering alarm. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements.Specifications
| Video | |
|---|---|
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
| PAL resolutions | 720x576 pixels |
| NTSC resolutions | 720x480 pixels |
| Maximum video resolution | 720 x 576 pixels |
| Maximum frame rate | 30 fps |
| Channels quantity | 4 channels |
| Performance | |
| PTZ control | Yes |
| Internal memory | 1024 MB |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Design | |
| Wall mountable | Yes |
| LED indicators | Status |
| Product colour | White |
| Certification | 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267 |
| Network | |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Quality of Service (QoS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Security | |
| Video motion detection | Yes |
| Security algorithms | HTTPS |
| IP address filtering | Yes |
| Active tampering alarm | Yes |

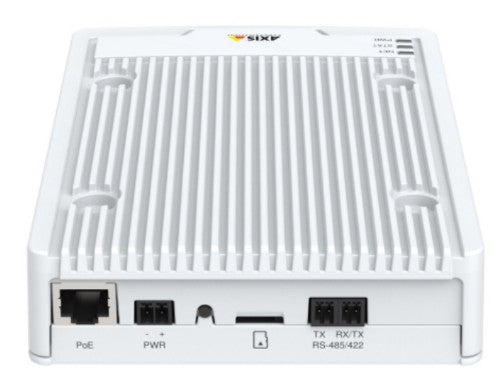

| Ports & interfaces | |
| RS-485 ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| BNC input ports | 4 |
| Power | |
| Power consumption (typical) | 4.7 W |
| Weight & dimensions | |
| Weight | 650 g |
| Width | 187 mm |
| Height | 37 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Technical details | |
| Wall mountable | Yes |
| PTZ control | Yes |
| Internal memory | 1024 MB |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Flash memory | 512 MB |
| Product colour | White |
| Certificates | |
| Certification | 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267 |
| Indication | |
| LED indicators | Status |
| Features | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
