Description
1920x1080px, 30fps, 512 MB Flash, 650g
Key Features
- 2-way audio and configurable I/O; PTZ control; Signed firmware and secure boot; Support for HD analog cameras up to 4K; Zipstream with support for H.264/H.265
Description

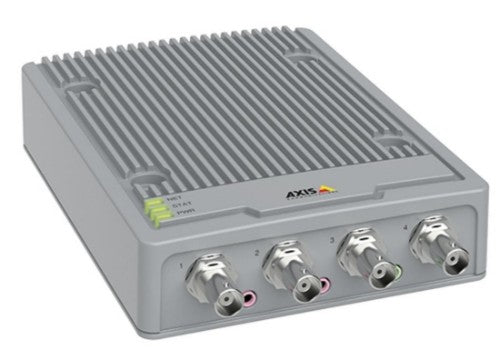

AXIS P7304 is a full-featured, 4-channel video encoder that adds the benefits of IP surveillance to any analog camera system. It supports standard and HD analog cameras up to 4K resolution, and analog PTZ cameras. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements. The encoder features two-way audio, I/O ports, and a memory card slot for edge storage. It also comes with intelligent analytics such as motion detection, audio detection and tampering alarm.Specifications
| Video | |
|---|---|
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
| PAL resolutions | 720x576 pixels |
| NTSC resolutions | 720x480 pixels |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 30 fps |
| Channels quantity | 4 channels |
| Performance | |
| PTZ control | Yes |
| Internal memory | 1024 MB |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Design | |
| Wall mountable | Yes |
| LED indicators | Status |
| Product colour | Grey |
| Certification | EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Network | |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Quality of Service (QoS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Security | |
| Video motion detection | Yes |
| Security algorithms | HTTPS |
| IP address filtering | Yes |
| Audio detection | Yes |
| Active tampering alarm | Yes |

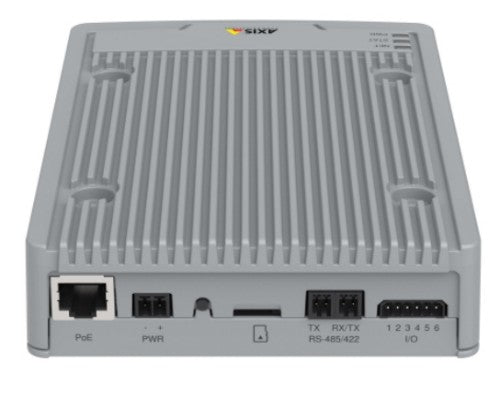

| Ports & interfaces | |
| RS-485 ports | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| I/O terminal ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| BNC input ports | 4 |
| Power | |
| Power consumption (typical) | 8.2 W |
| Weight & dimensions | |
| Weight | 650 g |
| Width | 187 mm |
| Height | 37 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Technical details | |
| Wall mountable | Yes |
| PTZ control | Yes |
| Internal memory | 1024 MB |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Flash memory | 512 MB |
| Product colour | Grey |
| Certificates | |
| Certification | EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Indication | |
| LED indicators | Status |
| Features | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
