Description

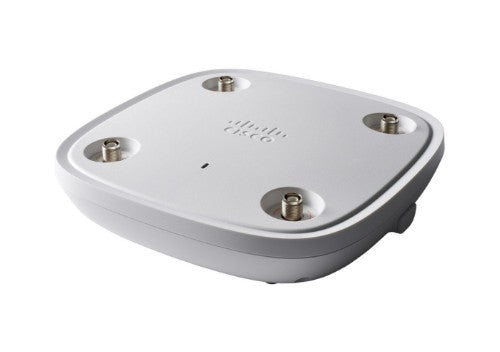

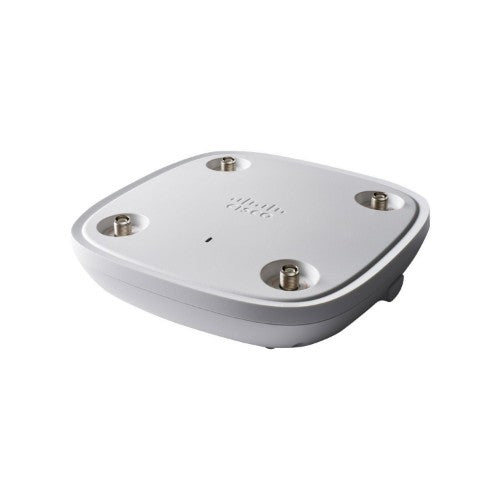

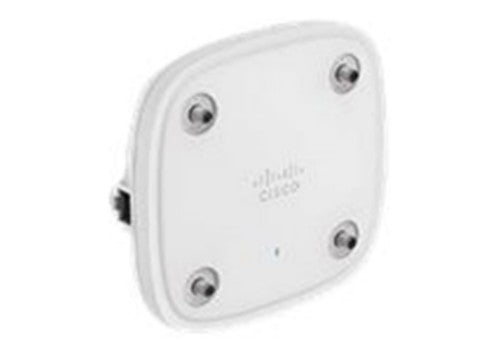

Catalyst 9120AXE-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, PoE, External antenna, (C9120AXE-E)
Key Features
- POWERFUL Wi-Fi 6 PERFORMANCE: 4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee
- CISCO CLEANAIR: Powered by Cisco RF ASIC, offer superior analytics and security
- ECOSYSTEM: End-point interoperability and optimised performance on Apple and Samsung devices
- EMBEDDED WIRELESS CONTROLLER: Controller functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only)
- PEACE OF MIND: 90-day software and limited lifetime hardware warranty
Description
The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 5000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Syslog | Yes |
| Country of origin | Mexico |
| On/off switch | Yes |
| Firmware upgradeable | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Channels quantity | 29 channels |
| Maximum data transfer rate | 5000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Wireless LAN features | |
| Channels quantity | 29 channels |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Memory | |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Channels quantity | 29 channels |
| Maximum data transfer rate | 5000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 2500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5000 Mbit/s |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Security | |
| Security algorithms | AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3 |
| Management features | |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Internal RJ-45 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45), Mobile network (SIM), Wi-Fi |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power plug type | Type C |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Floor, Table |
| Country of origin | Mexico |
| On/off switch | Yes |
| Product colour | White |
| Antenna | |
| Number of connectors | 2 |
| Antenna type | Internal & external |
| Antennas quantity | 4 |
| Antenna gain level (max) | 6 dBi |
| Antenna connector type | RP-TNC |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Technical details | |
| Firmware upgradeable | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Width | 216 mm |
| Depth | 216 mm |
| Weight | 1.36 kg |
| Height | 51 mm |
| Package width | 244.6 mm |
| Package depth | 263.7 mm |
| Package height | 90.4 mm |
| Package weight | 671.2 g |
| Packaging data | |
| PoE adapter included | Yes |
| CD manual | Yes |
| Package width | 244.6 mm |
| Package depth | 263.7 mm |
| Package height | 90.4 mm |
| Package weight | 671.2 g |
| AC adapter included | Yes |
| Packaging content | |
| PoE adapter included | Yes |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| CD manual | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -39 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4572 m |
| Logistics data | |
| Country of origin | Mexico |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
