Description

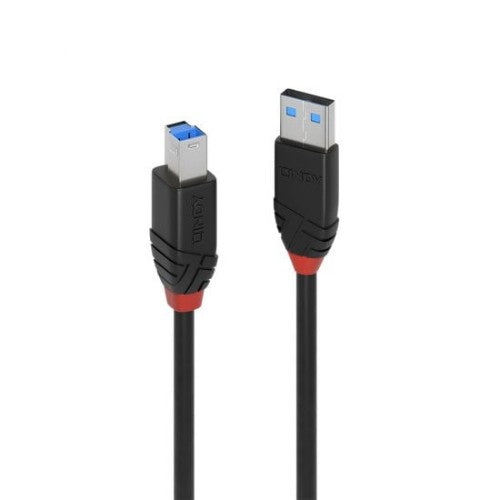

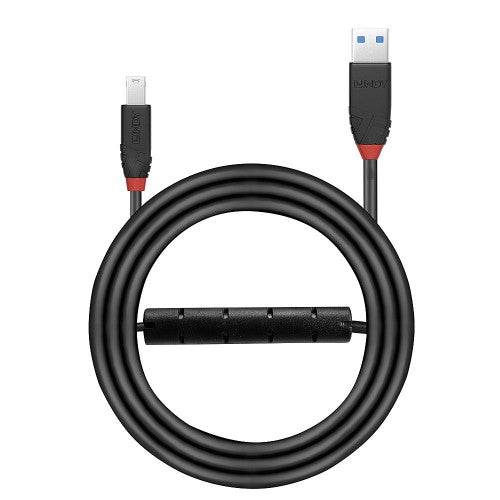

10m USB 3.0 Active Cable Slim
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss. The cable's unique and slim design allows easy installation due to the active electronics that are housed in a small cable mould - an advantage over other active USB leads which use bulky connectors.
It is recommended that this extender is used with low power or self powered USB peripherals and not high power consuming devices, unless they have their own power supply.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- 10 metre USB 3.0 Active Repeater Cable
- Supports transfer rates up to 5Gbps
- Ideal for direct device connection
- Plug and Play installation
- 2 year warranty
Description
The Lindy USB 3.0 Active Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps. With USB A male and USB B male connectors this product allows Type B devices such as printers to be connected directly at longer distances and ensures flexible positioning.The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss. The cable's unique and slim design allows easy installation due to the active electronics that are housed in a small cable mould - an advantage over other active USB leads which use bulky connectors.
It is recommended that this extender is used with low power or self powered USB peripherals and not high power consuming devices, unless they have their own power supply.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| AWG wire size | 28/28/24 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Cable length | 10 m |
| Connector contacts plating | Copper |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 5 Gbit/s |
| Weight | 400 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable length | 10 m |
| Weight | 400 g |
| Package width | 230 mm |
| Package depth | 198 mm |
| Package height | 63 mm |
| Package weight | 528 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 198 mm |
| Package height | 63 mm |
| Package weight | 528 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector contacts plating | Copper |
| Data transmission | |
| Maximum data transfer rate | 5000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, FCC, REACH |
| Other features | |
| Product colour | Black |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
