Description

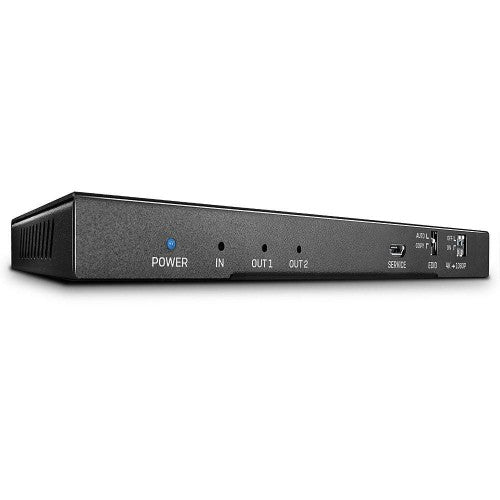

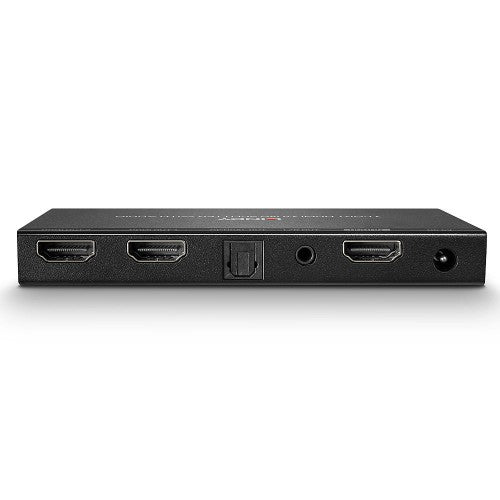

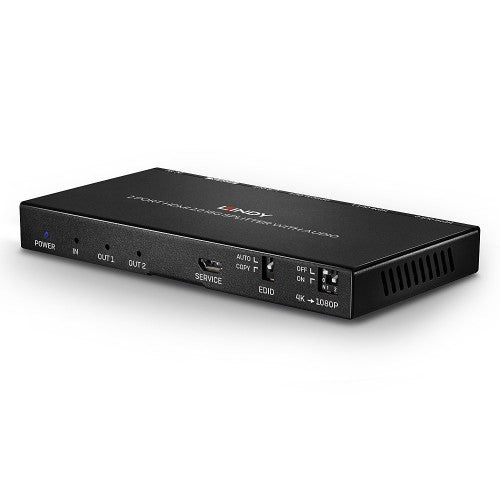

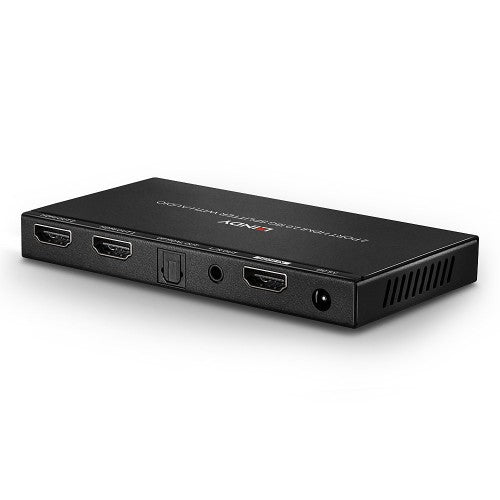

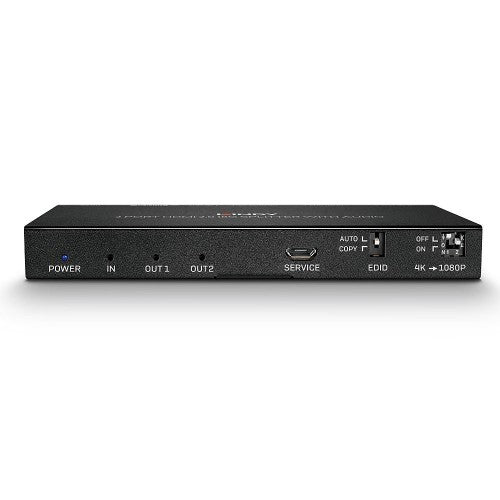

2 Port HDMI 18G Splitter with Audio and Downscaling
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching dual display digital signage in retail scenarios, displaying live video across two screens at event venues or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also features an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
Key Features
- Displays HDMI signals across 2 displays simultaneously from one source device
- Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR
- Extract digital and analogue audio from HDMI for non-HDMI amplifiers
- Features a neat switch for downscaling from 4K to 1080p
Description
The Lindy 2 Port HDMI 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 2 displays simultaneously from one source device, while extracting digital or analogue audio separately.With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching dual display digital signage in retail scenarios, displaying live video across two screens at event venues or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also features an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Audio ports quantity | 2 |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Features | |
| LED indicators | Yes |
| Housing material | Metal |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Product colour | Black |
| HD type | 4K Ultra HD |
| Power | |
| Output current | 1 A |
| Output voltage | 5 V |
| Weight & dimensions | |
| Weight | 40 g |
| Width | 120 mm |
| Depth | 14.4 mm |
| Height | 63 mm |
| Package weight | 128 g |
| Package type | Box |
| Package depth | 65 mm |
| Package width | 205 mm |
| Package height | 115 mm |
| Packaging data | |
| Package weight | 128 g |
| Package type | Box |
| Package depth | 65 mm |
| Package width | 205 mm |
| Package height | 115 mm |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Video | |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Colour | |
| Product colour | Black |
| Indication | |
| LED indicators | Yes |
| Technical details | |
| Housing material | Metal |
| Package width | 205 mm |
| Package height | 115 mm |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
