Description

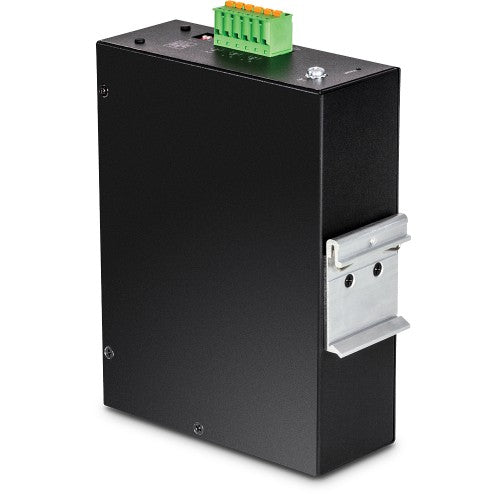

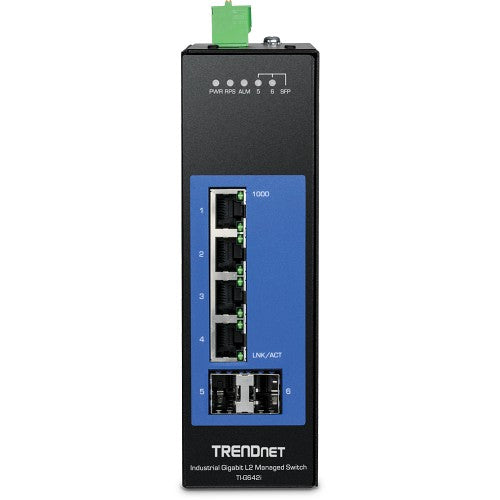

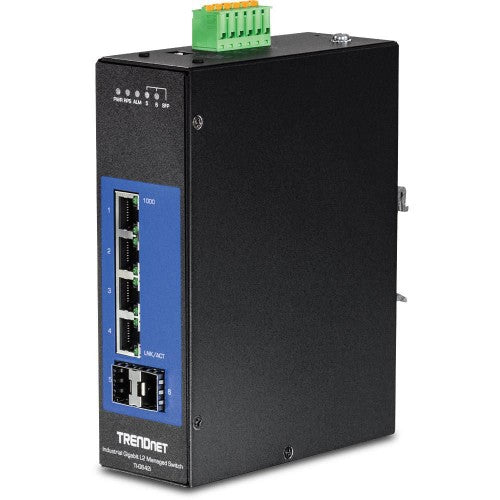

TI-G642i 6-Port Industrial Gigabit L2 Managed DIN-Rail Switch
These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.
Key Features
- 4 x Gigabit ports
- 2 x SFP slots
- Supports 100/1000Base-FX fiber SFP modules
- 12Gbps switching capacity
- Hardened IP30 rated metal housing
- Includes DIN-rail mounting bracket
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
- IEEE 802.1p QoS with queue scheduling support
- Bandwidth control per port

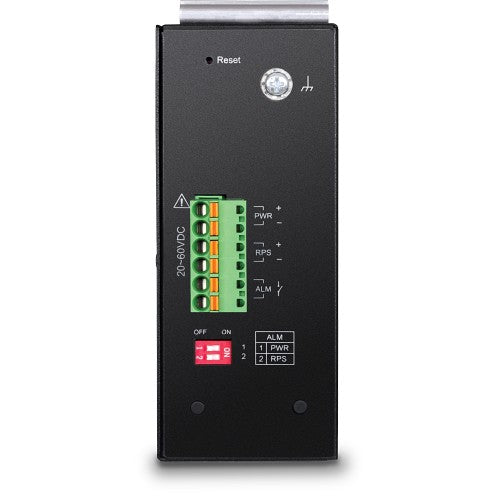

- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (model: TI-M6024)
Description
TRENDnet’s Industrial Gigabit L2 Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today’s SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications.These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10240 |
| MAC address table | 8192 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 18.9 Mpps |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 256 |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP snooping |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Design | |
| Reset button | Yes |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, FCC |
| Performance | |
| Mean time between failures (MTBF) | 996299 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 12 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 120 mm |
| Height | 50 mm |
| Weight | 720 g |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 996299 h |
| Housing material | Metal |
| Rack mounting | No |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
