Description

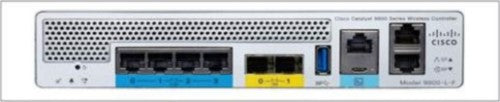

C9800-L-F, RJ-45, Mini USB B, USB 3.0, 2x 2x 10G/Multigigabit fiber, 215.9x230.1x40.2 mm
Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.
The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.
Key Features
- Choose between copper and fiber uplinks. This choice gives you flexibility in your network
- High availability and seamless software updates, enabled by hot and cold patching, keep your clients and services always on in planned and unplanned events
- Secure the air, devices, and users with the Cisco Catalyst 9800-L. The wireless infrastructure becomes the strongest first line of defense, with Encrypted Traffic Analytics and Software-Defined Access (SD-Access). The controller comes with built-in security: Secure Boot, runtime defenses, image signing, integrity verification, and hardware authenticity
- Built on a modular operating system, the controller features open and programmable APIs that enable automation of day-0 to day-N network operations. Model-driven streaming telemetry provides deep insights into your network and client health
Description
The Cisco® Catalyst® 9800-L is a fixed wireless controller with seamless software updates for small and midsize enterprises.Built from the ground up for intent-based networking, the Cisco Catalyst 9800-L brings together Cisco IOS® XE Software and Cisco RF excellence to create a best-in-class wireless experience for your evolving and growing organization.
The Cisco Catalyst 9800-L is feature rich and enterprise ready to power your business-critical operations and transform end-user experiences.
Specifications
| Design | |
|---|---|
| LED indicators | Yes |
| Safety | UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1 |
| Certification | FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3 |
| Product colour | Grey |
| Performance | |
| Control display unit | No |
| Certification | FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3 |
| Product colour | Grey |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wi-Fi | Yes |
| Security | |
| VLAN support | Yes |
| Security algorithms | AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 6 |
| Fixed SFP ports quantity | 2 |
| Console port | RJ-45 |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Quality of Service (QoS) support | Yes |
| Weight & dimensions | |
| Weight | 1.82 kg |
| Width | 215.9 mm |
| Height | 40.2 mm |
| Depth | 230.1 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Wi-Fi | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Display | |
| Control display unit | No |
| Certificates | |
| Safety | UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1 |
| Certification | FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
