Description
1 x 10/100 Ethernet port, 24 x SFP+, 2 x 40G QSFP+, Serial port RJ45, 1 x USB, 443 x 183 x 44 mm

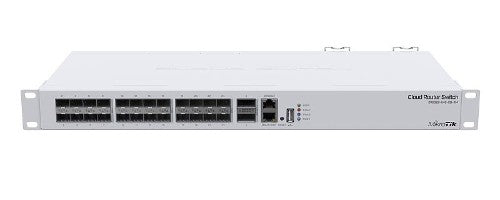

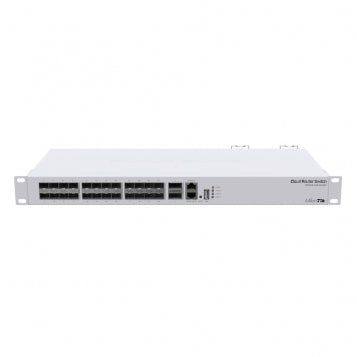

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

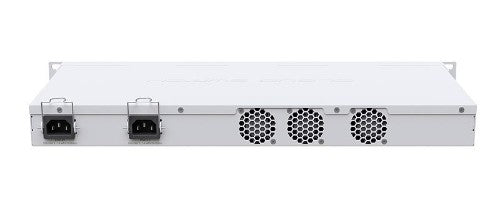

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Description
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Switch layer | L3 |
| Power | |
| Power connector | AC-in jack |
| Power consumption (max) | 69 W |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Processor frequency | 650 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| QSFP+ module slots quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Network | |
| 10G support | Yes |
| Data transmission | |
| Throughput | 320 Mpps |
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 252 Mpps |
| Memory | |
| Memory type | RAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 650 MHz |
| Memory type | RAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 443 mm |
| Depth | 183 mm |
| Height | 44 mm |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
