Description

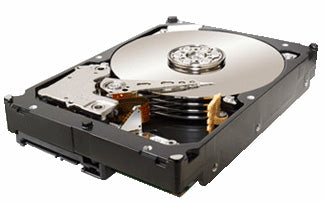

500GB Constellation ES SAS HDD, 3.5", 7200 RPM, 16MB, 610g, silver/black
- Fourth-generation, enterprise, nearline drive designed for 24×7 operation;
- Up to 2TB capacity for data-hungry enterprise business applications;
- Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access;
- Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods;
- Proven reliability with multi-drive firmware maximized for enterprise system availability;
- Robust performance with dual processor technology and ramp load technology;
- Provides business sustainability with Seagate Unified Storage architecture;
- 6Gb/s SAS performance with error detection and correction (IOEDC/IOECC) capabilities for the ultimate in data integrity;
- Government-grade Self-Encrypting Drive (SED) option for TCG-compliant/AES-128 security cuts IT drive retirement costs while securely protecting data.
Description
Constellation ES drives offer the world’s highest capacity at 2TB while providing enterprise robustness for Tier 2/nearline environments. They are differentiated from 3.5-inch desktop drives by offering enterprise-class reliability and superior data integrity with a UER of 1E10-15. Enterprise-class rotational vibration tolerance provides robust protection from chassis and fan vibrations (RV 12.5 rad/sec 20 to 1500Hz). The drives are offered with either a 3-Gb/s SATA interface or a 6-Gb/s SAS 2.0 interface for superior data protection at industry-leading speeds, along with optional power saving modes with PowerChoice.- Fourth-generation, enterprise, nearline drive designed for 24×7 operation;
- Up to 2TB capacity for data-hungry enterprise business applications;
- Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access;
- Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods;
- Proven reliability with multi-drive firmware maximized for enterprise system availability;
- Robust performance with dual processor technology and ramp load technology;
- Provides business sustainability with Seagate Unified Storage architecture;
- 6Gb/s SAS performance with error detection and correction (IOEDC/IOECC) capabilities for the ultimate in data integrity;
- Government-grade Self-Encrypting Drive (SED) option for TCG-compliant/AES-128 security cuts IT drive retirement costs while securely protecting data.
Specifications
| Hard drive | |
|---|---|
| Write seek time | 9.5 ms |
| Read seek time | 8.5 ms |
| Average latency | 4.16 ms |
| Track to track seek time | 0.5 ms |
| Mean time between failures (MTBF) | 1200000 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 500 GB |
| Features | |
| Write seek time | 9.5 ms |
| Read seek time | 8.5 ms |
| Average latency | 4.16 ms |
| Track to track seek time | 0.5 ms |
| Mean time between failures (MTBF) | 1200000 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 500 GB |
| Storage drive buffer size | 16 MB |
| Power | |
| Power consumption (typical) | 10.4 W |
| Start-up current | 1.89 A |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Mean time between failures (MTBF) | 1200000 h |
| Weight & dimensions | |
| Width | 101.6 mm |
| Weight | 610 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
