3000VA / 1800W, 162-290 VAC, 50Hz - 60Hz, 2-6ms, 12V/9Ah, 40dB, 0°C – 40°C, 11.5 kg
Key Features
- Human Interface Device (HID) compatible USB connection (no additional drivers needed)
- Comprehensive display allows easy monitoring and access of UPS status
- Reliable and economic line-interactive series
- Compact size and high performance for home usage
- Reduced Environmental Impact: no CD, no USB cable in the box
Description

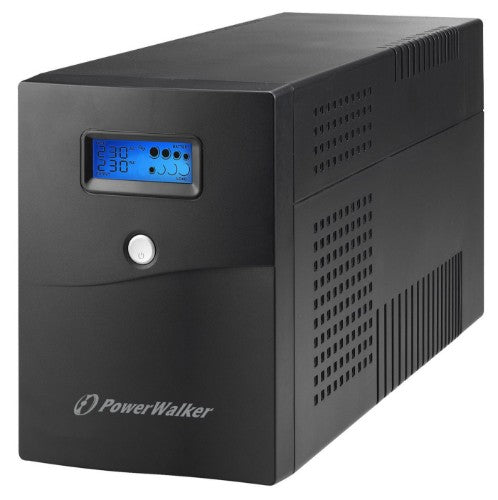

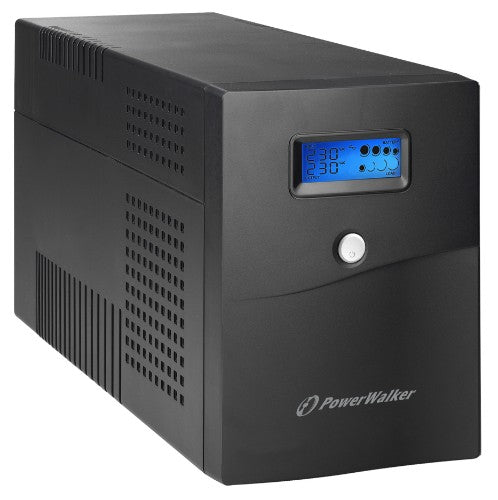

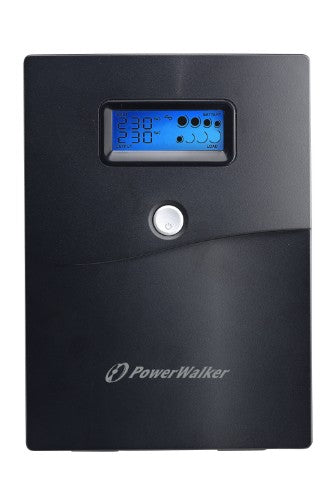

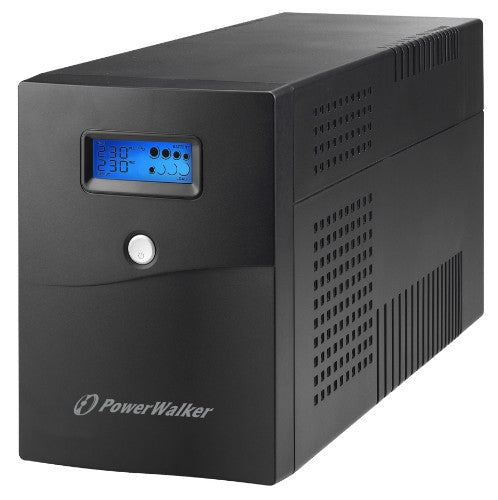

The PowerWalker VI 600-3000 SCL series offers a simple yet effective solution for PCs and other home applications. It is available with Type F (CEE 7/3), Type E (CEE 7/5) and Type G (BS 1363) outlets and features a microprocessor-controlled Automatic Voltage Regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers convenient touch panel which allows to scroll through most useful monitored parameters.
All UPSs in this series can be turned on directly from battery (cold start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S' native drivers thanks to HID. To offer the best price-performance and to reduce environmental impact we provide the UPS without Software CD and USB cable.
Specifications
| Power |
|---|
| Output voltage regulation |
10% |
| Output power factor |
0.6 |
| Output power |
1800 W |
| Input operation voltage (min) |
162 V |
| Input operation voltage (max) |
290 V |
| Output operation voltage (max) |
230 V |
| Maximum current |
1 A |
| Efficiency |
90% |
| Output power capacity |
3 kVA |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Response time |
6 ms |
| Power protection features |
Overcharge, Overload |
| Noise level |
40 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output voltage regulation |
10% |
| Output power factor |
0.6 |
| Response time |
6 ms |
| Output power |
1800 W |
| Input operation voltage (min) |
162 V |
| Input operation voltage (max) |
290 V |
| Output operation voltage (max) |
230 V |
| Maximum current |
1 A |
| Efficiency |
90% |
| Power protection features |
Overcharge, Overload |
| Noise level |
40 dB |
| Output power capacity |
3 kVA |
| Input frequency |
50/60 Hz |

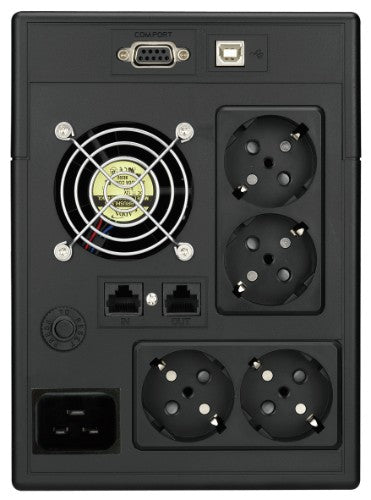

| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Number of type F outputs |
1 |
| AC outlet types |
Type F |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Number of battery cells |
2 |
| Battery recharge time |
6 h |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Built-in fan |
No |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Cooling |
|---|
| Built-in fan |
No |
| Weight & dimensions |
|---|
| Weight |
11.5 kg |
| Width |
146 mm |
| Height |
205 mm |
| Depth |
397 mm |
| Packaging data |
|---|
| Manual |
Yes |
| Packaging content |
|---|
| Manual |
Yes |
