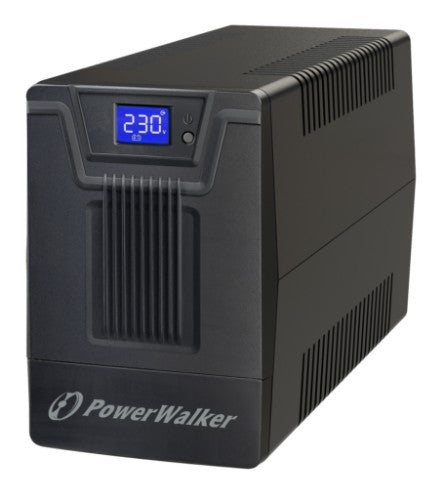

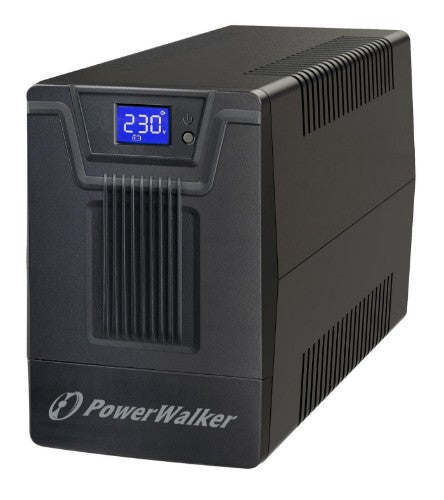

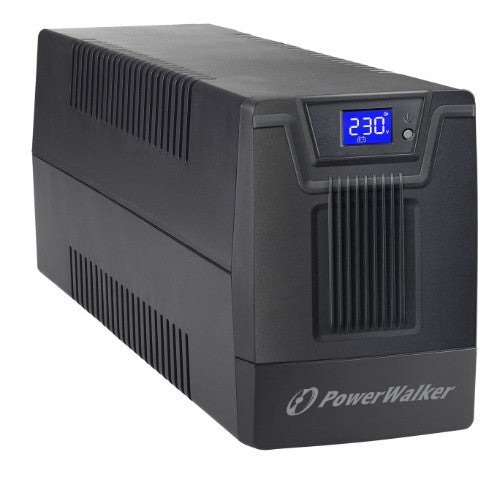

PowerWalker VI 1500 SCL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W

1500VA / 900W, 162-290VAC, 50Hz - 60Hz, 2-6ms, 12V/9Ah, 0°C – 40°C, 40dB

Key Features

• Human Interface Device (HID) compatible USB connection (no additional drivers needed)

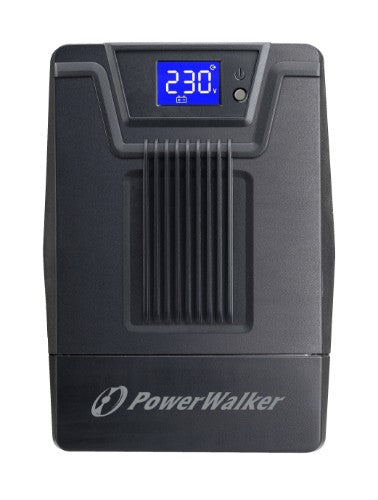

• Comprehensive display allows easy monitoring and access of UPS status
• Reliable and economic line-interactive series
• Compact size and high performance for home usage
• Reduced Environmental Impact: no CD, no USB cable in the box

Description

The PowerWalker VI 600-3000 SCL series offers a simple yet effective solution for PCs and other home applications. It is available with Type F (CEE 7/3), Type E (CEE 7/5) and Type G (BS 1363) outlets and features a microprocessor-controlled Automatic Voltage Regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers convenient touch panel which allows to scroll through most useful monitored parameters.

All UPSs in this series can be turned on directly from battery (cold start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S' native drivers thanks to HID. To offer the best price-performance and to reduce environmental impact we provide the UPS without Software CD and USB cable.

Specifications

Power
Output voltage regulation	10%
Output power factor	0.6
Output power	900 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (max)	230 V
Maximum current	1 A
Output power capacity	1.5 kVA
Performance
UPS topology	Line-Interactive
Waveform	Sine
Response time	6 ms
Power protection features	Overdischarge, Overload
Noise level	40 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	10%
Output power factor	0.6
Response time	6 ms
Output power	900 W
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Output operation voltage (max)	230 V
Maximum current	1 A
Power protection features	Overdischarge, Overload
Noise level	40 dB
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes

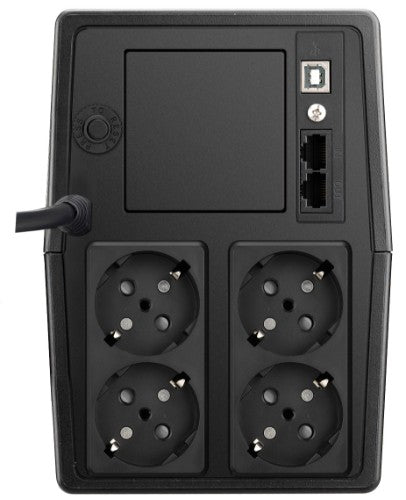

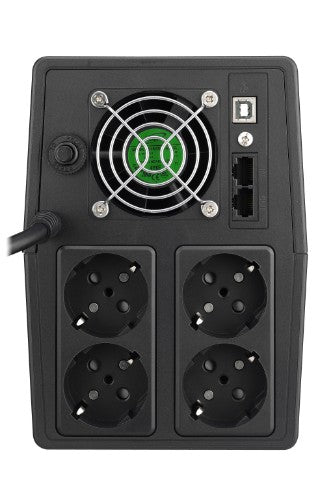

Number of type F outputs	4
AC outlet types	Type F
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Number of battery cells	2
Battery recharge time	6 h
Design
Form factor	Tower
Product colour	Black
Built-in fan	No
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Cooling
Built-in fan	No
Weight & dimensions
Package width	192 mm
Package depth	390 mm
Package height	275 mm
Weight	104 kg
Width	130 mm
Height	182 mm
Depth	320 mm
Packaging data
Manual	Yes
Package width	192 mm
Package depth	390 mm
Package height	275 mm
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Manual	Yes
