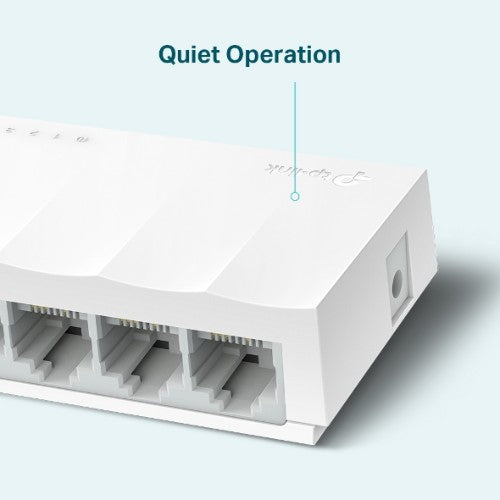

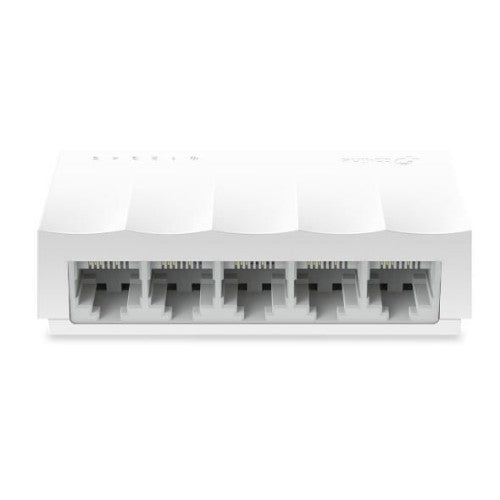

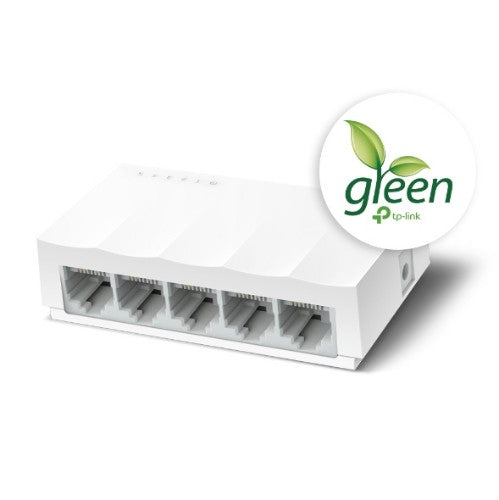

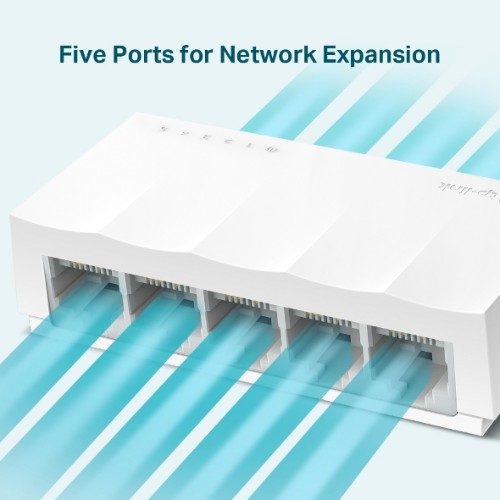

LS1005 - 5-Port 10/100Mbit/s
Description
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Jumbo frames | 2000 |
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 0.7 Mpps |
| Design | |
| Wall mountable | No |
| International Protection (IP) code | IP20, IP40 |
| Product colour | White |
| Housing material | Plastic |
| Rack mounting | No |
| Certification | CE, RoHS |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 1.65 W |
| Power supply included | Yes |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 5.627 BTU/h |
| Weight & dimensions | |
| Width | 83.6 mm |
| Depth | 45.7 mm |
| Height | 22.8 mm |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package type | Box |
| Quick start guide | Yes |
| Technical details | |
| Product colour | White |
| Housing material | Plastic |
| Rack mounting | No |
| Certificates | |
| Certification | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
