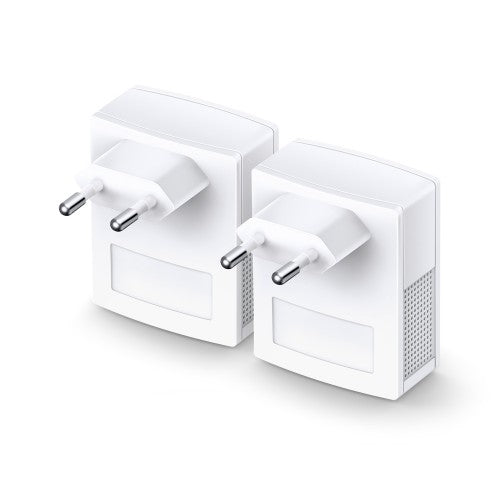

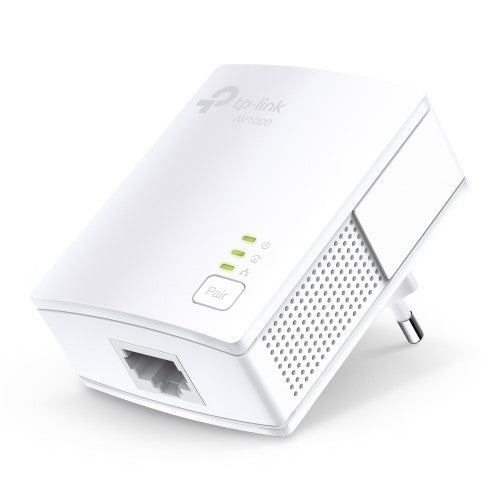

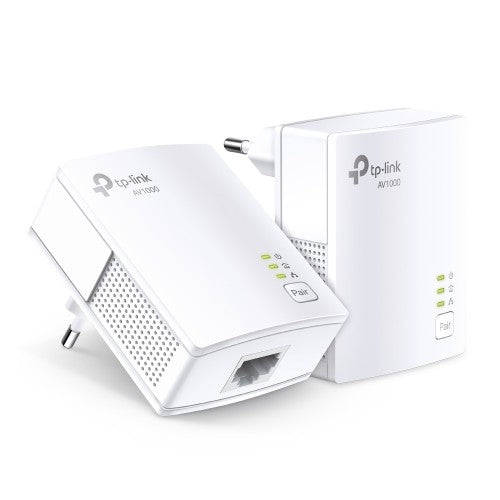

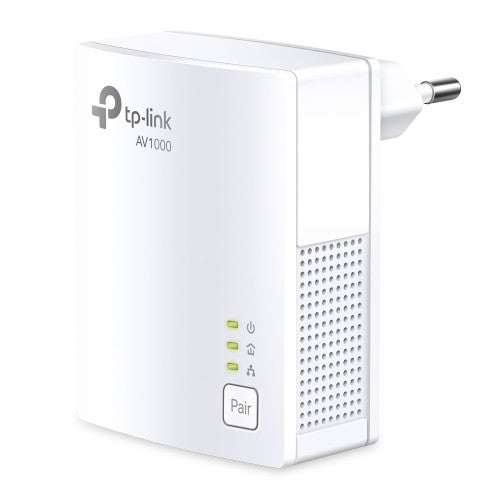

TP-Link TL-PA7017 KIT PowerLine network adapter 1000 Mbit/s Ethernet LAN White 2 pc(s)

1000 Mb/s, RJ-45, 300 m, RoHS,

Key Features

• HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
• Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles
• Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away
• Patented Power - Saving Mode - automatically reduces power consumption by up to 85%

Description

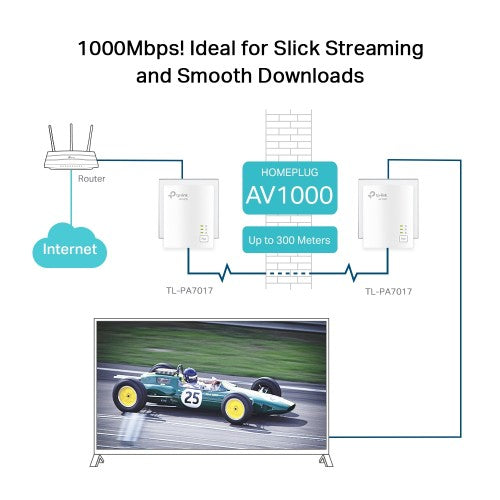

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

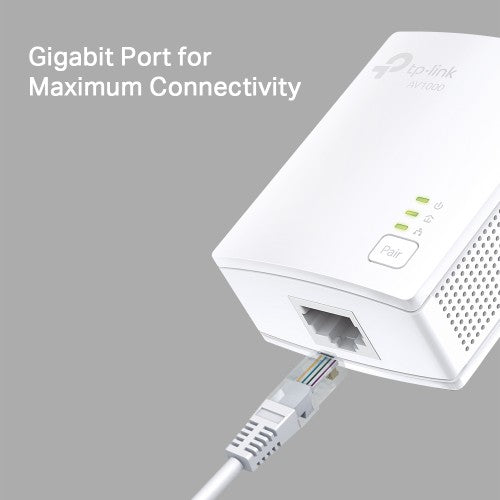

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

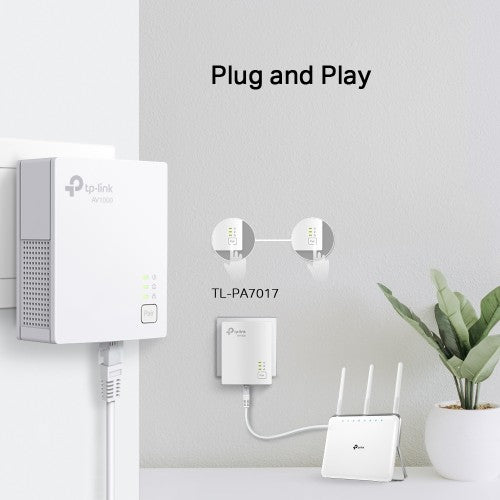

Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

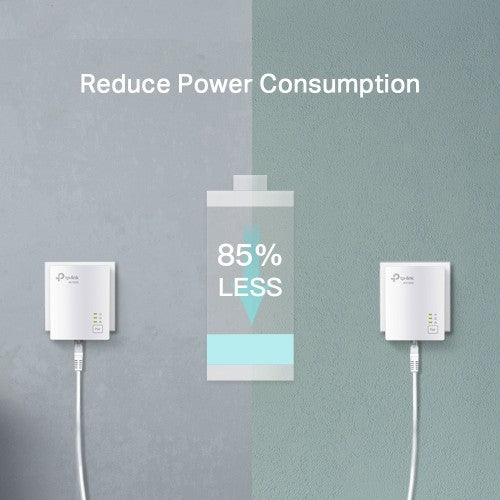

Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%

Specifications

Performance
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power plug	Type F
Built-in power socket	No
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
Plug and Play	Yes
Technical details
Antenna type	Internal
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power plug	Type F
Built-in power socket	No
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
LED indicators	LAN, PLC, Power
Product colour	White
Plug and Play	Yes
Certification	CE
Harmonized System (HS) code	85171800
Compliance certificates	RoHS
Power
Power consumption (typical)	2.3 W
Power consumption (standby)	0.5 W
AC input voltage	220 V
AC input frequency	50 Hz
Design
Antenna type	Internal
LED indicators	LAN, PLC, Power
Product colour	White
Certification	CE
System requirements
Mac compatibility	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	65 mm
Depth	28.5 mm
Height	52 mm
Package width	190 mm
Package depth	136 mm
Package height	100 mm
Package weight	410 g
Packaging data
Package width	190 mm
Package depth	136 mm
Package height	100 mm
Package weight	410 g
Certificates
Compliance certificates	RoHS
Packaging content
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Logistics data
Harmonized System (HS) code	85171800
