Description
Gryphon I GD4590, 2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, Digimarc, Black-
Datalogic distinctive technology with highly visible white-illumination and 4-Dot aimer with center cross for targeted scanning
Datalogic’s ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration for superior good-read feedback
Motionix™ motion-sensing technology for seamless reading mode transitions
Image capture and document scanning capabilities
Omnidirectional reading of 1D, 2D and postal codes plus stacked, composite codes and dot codes; Digital Watermarks on specific models
Choice of Bluetooth wireless technology version or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
Wireless battery charging system

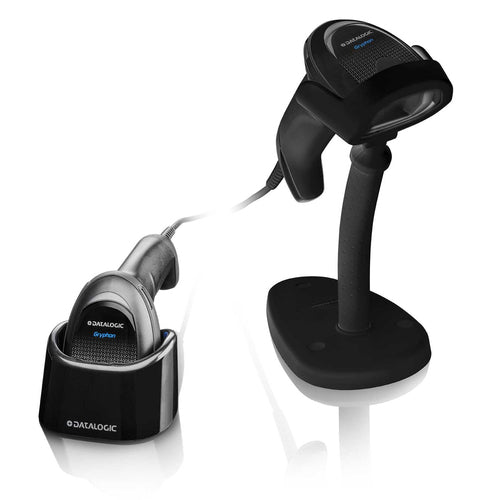

Choice of WLC4090 adjustable position cradle with Scan-While-Charging capability or WLC4190 sleek desk/wall cradle with USB Type C connectivity
Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
Specific black models with enclosures treated with anti-microbial additives available (ISO22196 compliant)
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Description
1 MP optics for superior scanning and Depth of FieldDatalogic distinctive technology with highly visible white-illumination and 4-Dot aimer with center cross for targeted scanning
Datalogic’s ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration for superior good-read feedback
Motionix™ motion-sensing technology for seamless reading mode transitions
Image capture and document scanning capabilities
Omnidirectional reading of 1D, 2D and postal codes plus stacked, composite codes and dot codes; Digital Watermarks on specific models
Choice of Bluetooth wireless technology version or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
Wireless battery charging system
Choice of WLC4090 adjustable position cradle with Scan-While-Charging capability or WLC4190 sleek desk/wall cradle with USB Type C connectivity
Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
Specific black models with enclosures treated with anti-microbial additives available (ISO22196 compliant)
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Specifications
| Scanning | |
|---|---|
| Type | Built-in bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, QR Code |
| Yaw reading angle | -65 - 65° |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 360° |
| Sensor type | Laser |
| Scanner type | 1D/2D |
| Pitch reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Performance | |
| Protection features | Drop proof, Shock resistant |
| LED indicators | Yes |
| Built-in display | No |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Image formats supported | BMP, JPEG, TIFF |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Built-in bar code reader |
| Protection features | Drop proof, Shock resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Power consumption | 400 mA |
| Power source type | DC |
| Input voltage | 5 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 109 mm |
| Height | 166 mm |
| Weight | 161 g |
| Technical details | |
| Type | Built-in bar code reader |
| Protection features | Drop proof, Shock resistant |
| LED indicators | Yes |
| Built-in display | No |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
