Panorama Antennas WMM8G-7-38-5SP network antenna Directional antenna SMA 9 dBi

2x2 Cellular/LTE (698-960/1710-3800MHz), 9 dBi, Directional, IP65, 5m cable SMA-M

Description

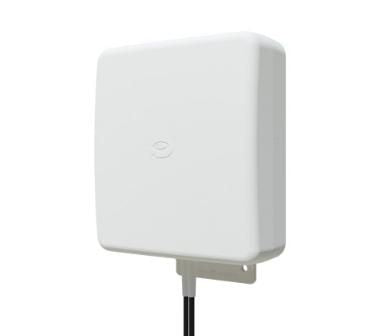

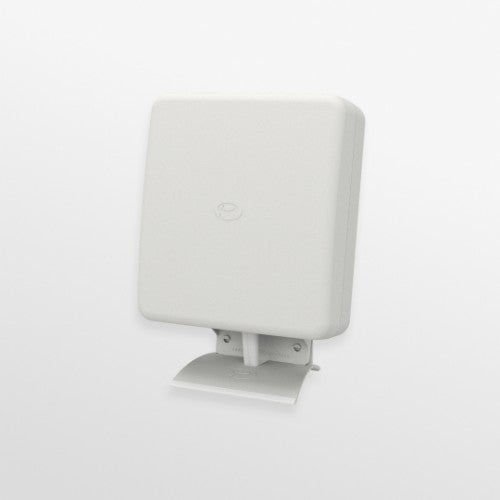

The WMM8G-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client side MIMO and diversity support for 4G and some 5G networks. The rugged, weatherproof housing is designed for wall mounting.

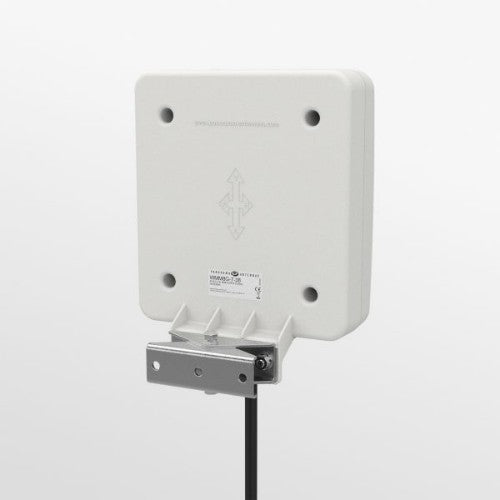

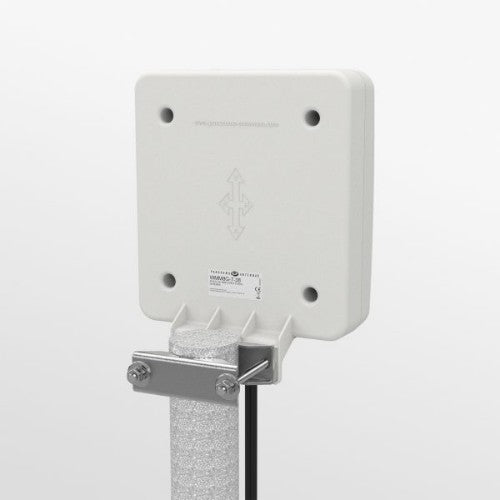

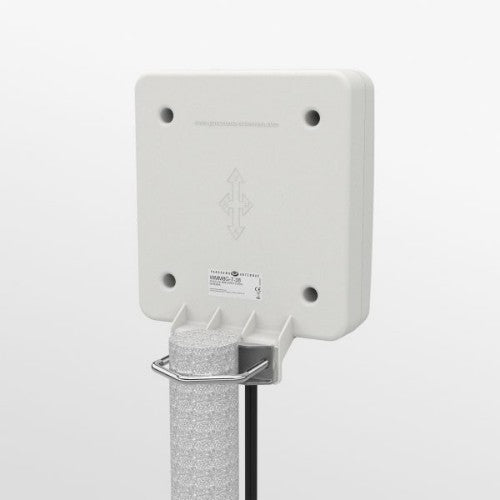

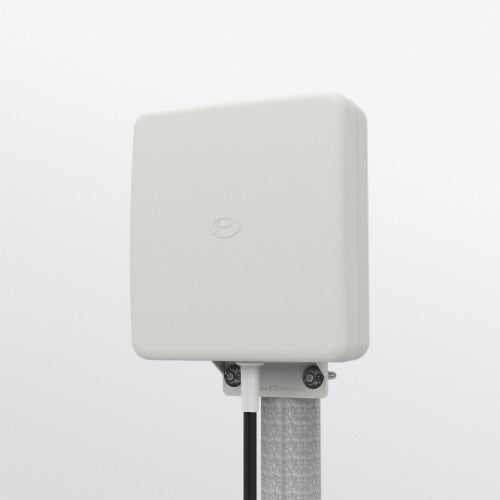

Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.

Specifications

Performance
Antenna gain level (max)	9 dBi
Frequency band	0.698-0.96/1.71-3.8 GHz
Impedance	50 Ω
Features
International Protection (IP) code	IP65
Connector gender	Male
Antenna type	Directional antenna
Voltage Standing Wave Ratio (VSWR)	<2:1
Polarization	Vertical polarization
Mounting	Wall/Pole
Product colour	White
Cable length	5 m
Antenna connector type	SMA
Antenna gain level (max)	9 dBi
Frequency band	0.698-0.96/1.71-3.8 GHz
Impedance	50 Ω
Power
Power consumption (max)	50 W
Operational conditions
Operating temperature (T-T)	-30 - 70 °C
Weight & dimensions
Width	180 mm
Depth	94 mm
Height	230 mm
Technical details
Antenna gain level (max)	9 dBi
Frequency band	0.698-0.96/1.71-3.8 GHz
Antenna type	Directional antenna
Voltage Standing Wave Ratio (VSWR)	<2:1
Polarization	Vertical polarization
Mounting	Wall/Pole
Impedance	50 Ω
Cable length	5 m
Antenna connector type	SMA
Colour
Product colour	White
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
