Description
Dot matrix, 40 columns/180 dots, Parallel, 230 V, 106×180×88 mm, 470 g
Lightweight, palm-sized design

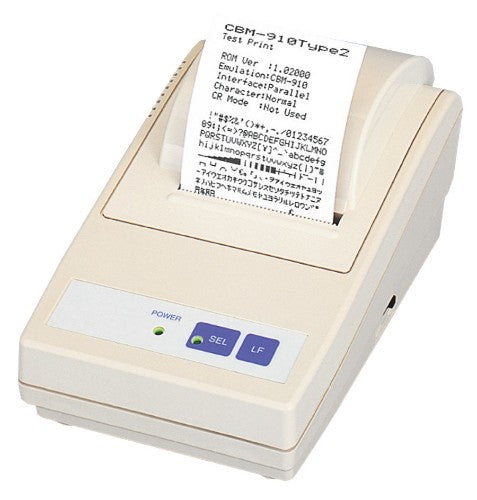

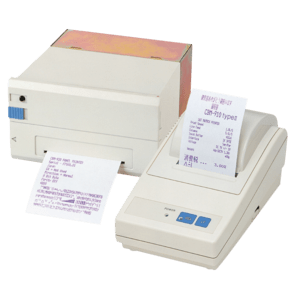

The CBM910II is one of the smallest POS printers available. Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications. Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.
Description
High speed, LCD control POS printingLightweight, palm-sized design
The CBM910II is one of the smallest POS printers available. Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications. Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.
Specifications
| Printing | |
|---|---|
| Colour | No |
| Character sets | Katakana, PC437, PC858, PC860, PC863, PC865, WPC1252 |
| Type | POS printer |
| Print technology | Dot matrix |
| Print speed | 1.8 lps |
| Character size | 1.08 x 2.4 mm |
| Performance | |
| Character sets | Katakana, PC437, PC858, PC860, PC863, PC865, WPC1252 |
| Type | POS printer |
| Print technology | Dot matrix |
| Print speed | 1.8 lps |
| Character size | 1.08 x 2.4 mm |
| Paper handling | |
| Printing media thickness | 0.13 µm |
| Maximum roll diameter | 6 cm |
| Ports & interfaces | |
| Standard interfaces | Parallel |
| Connectivity technology | Wired |
| Parallel ports quantity | 1 |
| Parallel connector | Yes |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Print technology | |
| Type | POS printer |
| Print technology | Dot matrix |
| Print speed | 1.8 lps |
| Character size | 1.08 x 2.4 mm |
| Column capacity | 40 |
| Technical details | |
| Character sets | Katakana, PC437, PC858, PC860, PC863, PC865, WPC1252 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Professional |
| Product colour | White |
| Buffer size | 2 KB |
| Colour | No |
| Harmonized System (HS) code | 84433210 |
| Features | |
| Character sets | Katakana, PC437, PC858, PC860, PC863, PC865, WPC1252 |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE Marking/TUV- GS/FCC class A/VCCI class A |
| Design | |
| Product colour | White |
| Memory | |
| Buffer size | 2 KB |
| Power | |
| AC input voltage | 230 V |
| Power source type | AC, DC |
| DC output voltage | 7 V |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 35 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Professional |
| Certificates | |
| Certification | CE Marking/TUV- GS/FCC class A/VCCI class A |
| Weight & dimensions | |
| Width | 106 mm |
| Depth | 180 mm |
| Height | 88 mm |
| Weight | 470 g |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Professional |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| LED indicators | Yes |
| Buffer size | 2 KB |
