Description

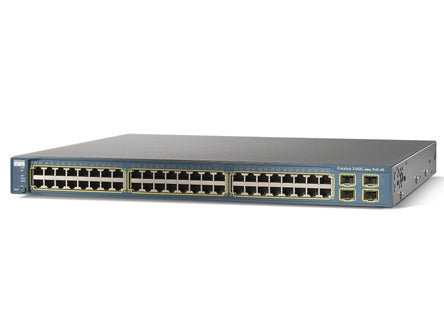

Catalyst 3560 - 48 port 10/100 PoE + 4 SFP Gigabit Ethernet Ports
Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services.
Features:
- 48 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports
- 1RU fixed-configuration, multilayer switch
- Enterprise-class intelligent services delivered to the network edge
- IEEE 802.3af and Cisco prestandard Power over Ethernet
- Standard Multilayer Software Image (SMI) installed
- Basic RIP and static routing, upgradable to full dynamic IP routing
Description
The Cisco® Catalyst® 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.Customers can deploy networkwide intelligent services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco Network Assistant is a centralized management application that simplifies the administration tasks for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides configuration wizards that greatly simplify the implementation of converged networks and intelligent network services.
Features:
- 48 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports
- 1RU fixed-configuration, multilayer switch
- Enterprise-class intelligent services delivered to the network edge
- IEEE 802.3af and Cisco prestandard Power over Ethernet
- Standard Multilayer Software Image (SMI) installed
- Basic RIP and static routing, upgradable to full dynamic IP routing
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 12000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | IGMP, RMON, SNMP, Telnet |
| Design | |
| Product colour | Turquoise |
| Stackable | No |
| Certification | FCC 15 A, EN 55022: 1998 (CISPR22), EN 55024: 1998 (CISPR24), VCCI A, AS/NZS 3548 A, CE, CNS 13438 A, MIC |
| Performance | |
| Mean time between failures (MTBF) | 173400 h |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Stackable | No |
| Power | |
| Power consumption (typical) | 65 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 3049 m |
| Weight & dimensions | |
| Weight | 6.1 kg |
| Technical details | |
| Product colour | Turquoise |
| Stackable | No |
| Mean time between failures (MTBF) | 173400 h |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Certificates | |
| Certification | FCC 15 A, EN 55022: 1998 (CISPR22), EN 55024: 1998 (CISPR24), VCCI A, AS/NZS 3548 A, CE, CNS 13438 A, MIC |
