Description
MiniDP/USB-A to DVI-D, 0.6m Cable, 4K UHD, 60Hz, 24 bit, 83x61x14mm, 109g, BLack

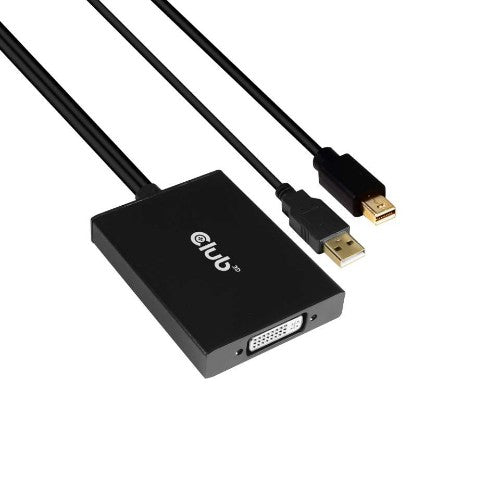

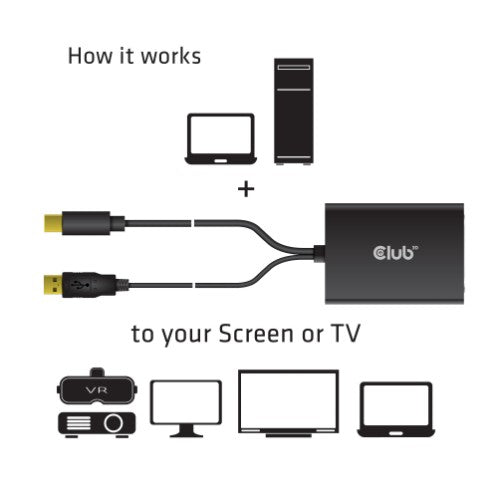

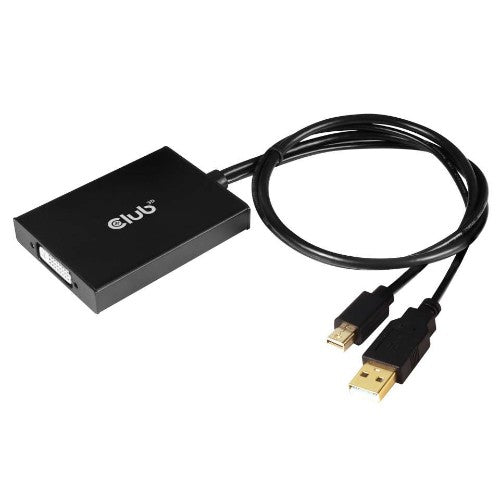

CAC-1130 - The Mini DisplayPort + USB Type A (for Power) to Dual Link DVI signal format converter seamlessly connect Mini DisplayPort based source to conventional DVI displays, such as CRT, LCD monitors and projectors, you can enjoy the ultimate widescreen canvas with a resolution of 2560 x 1440 @ 60Hz and up to 3840 x 2160 @ 30Hz on any other capable display.
Key Features
- Support Mini DisplayPort 1.2a input and Dual Link DVI or Single-Link DVI output

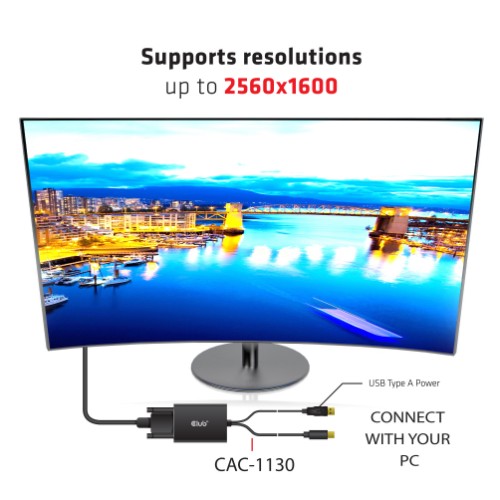

- Support Dual-Link DVI highest video resolution to WQXGA 2560 x 1600 @ 60Hz
- Support Dual-Link DVI highest video resolution 3840*2160 @ 30Hz
- Support Single-Link DVI highest video resolution 1920 x 1080
- Support deep color 24bit
- Powered from DisplayPort source and USB Type A Port
Description
MiniDisplayPort 1.2a to Dual Link DVI-D Active AdapterCAC-1130 - The Mini DisplayPort + USB Type A (for Power) to Dual Link DVI signal format converter seamlessly connect Mini DisplayPort based source to conventional DVI displays, such as CRT, LCD monitors and projectors, you can enjoy the ultimate widescreen canvas with a resolution of 2560 x 1440 @ 60Hz and up to 3840 x 2160 @ 30Hz on any other capable display.
Specifications
| Features | |
|---|---|
| Colour depth | 24 bit |
| DisplayPort version | 1.1 |
| Product colour | Black |
| Cable length | 0.6 m |
| Connector 1 | MiniDP/USB-A |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Maximum resolution | 3840 x 2160 pixels |
| Certification | CE, FCC, CE EMI |
| Maximum refresh rate | 60 Hz |
| Certificates | |
| Certification | CE, FCC, CE EMI |
| Compliance certificates | RoHS |
| Other features | |

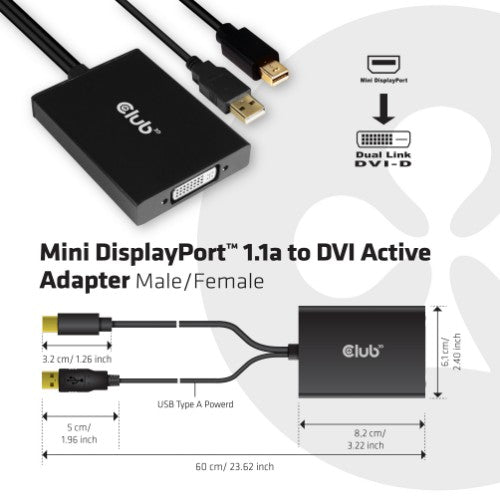

| Width | 83 mm |
| Height | 14 mm |
| Depth | 61 mm |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 64 g |
| Weight & dimensions | |
| Width | 83 mm |
| Height | 14 mm |
| Depth | 61 mm |
| Weight | 109 g |
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package weight | 173 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package weight | 173 g |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Plastic packaging weight | 5 g |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
