Description
StarTech.com 45ft / 14m HDMI Signal Booster - 4K 60Hz - USB Powered - HDMI Inline Repeater & Amplifier - 7.1 Audio Support (HDBOOST4K2)
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Cable length
from source
Cable length
to display
Total cable length
Maximum
resolution
82 ft. (25 m)
82 ft. (25 m)
164 ft. (50 m)
1080p (60 Hz) - 1920x1080
65 ft. (20 m)
65 ft. (20 m)
130 ft. (40 m)
4K (30 Hz) - 3840x2160
22.5 ft. (7 m)
22.5 ft. (7 m)
45 ft. (14 m)
4K (60 Hz) - 3840x2160
Maintains Ultra HD 4K Video
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
The StarTech.com Advantage
Key Features
- BOOST YOUR SIGNAL: Use this repeater to amplify your 4K HDMI signal extending it 45 ft. using certified HDMI cables. Operating System Independent, no extra drivers or software required
- 4K RESOLUTION SUPPORT: Enjoy astonishing picture quality with support for 4K 60Hz at up to 45 ft. away from your video source
- AUDIO SUPPORT: This HDMI inline repeater supports 7.1 surround sound audio for an complete AV solution
- SMALL FOOTPRINT: Designed to be compact, this HDMI amplifier is easy to setup and can be hidden away for a discreet installation
- INDUSTRY-LEADING SUPPORT: StarTech.com offers a 3-year warranty and free lifetime technical support on this 4K HDMI video signal booster, and has been the choice of IT professionals and businesses for over 30 years
Description
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Cable length
from source
Cable length
to display
Total cable length
Maximum
resolution
82 ft. (25 m)
82 ft. (25 m)
164 ft. (50 m)
1080p (60 Hz) - 1920x1080
65 ft. (20 m)
65 ft. (20 m)
130 ft. (40 m)
4K (30 Hz) - 3840x2160
22.5 ft. (7 m)
22.5 ft. (7 m)
45 ft. (14 m)
4K (60 Hz) - 3840x2160
Maintains Ultra HD 4K Video
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Material | Plastic |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Daisy chain | No |
| Maximum refresh rate | 60 Hz |
| Certification | REACH, CE, FCC |
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 14 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| HDCP version | 2.2 |
| Technical details | |
| Material | Plastic |
| HDCP | Yes |
| Audio output channels | 7.1 channels |
| Rack mounting | No |
| Daisy chain | No |
| Maximum refresh rate | 60 Hz |
| Certification | REACH, CE, FCC |
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 14 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| USB ports quantity | 1 |
| USB connector type | Micro-USB B |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| Power | |
| Power consumption (typical) | 2.5 W |
| USB powered | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
| Width | 52 mm |
| Package depth | 170 mm |
| Height | 13.7 mm |
| Depth | 28.5 mm |
| Package width | 140 mm |
| Package height | 30 mm |
| Weight | 15 g |
| Package weight | 113 g |
| Packaging data | |
| Package depth | 170 mm |
| Package width | 140 mm |
| Package height | 30 mm |
| Package weight | 113 g |

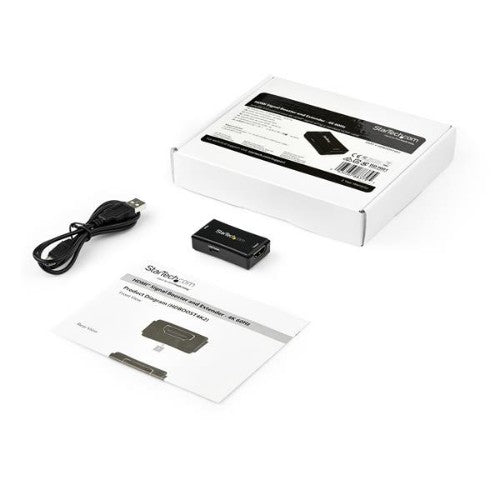

| Packaging content | |
| Cables included | USB |
| Quick start guide | Yes |
| Logistics data | |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 550 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 100 pc(s) |
