Description
Antenna QuSpot for RUT2xx

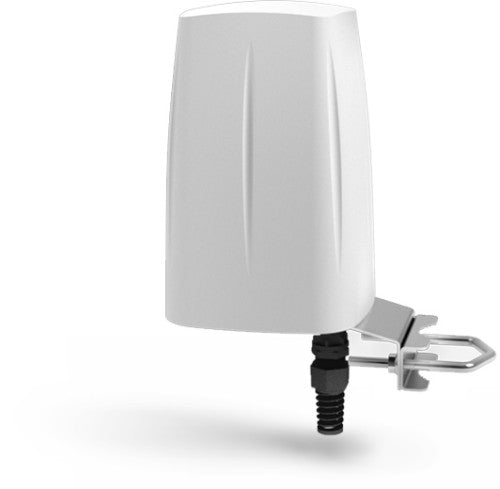

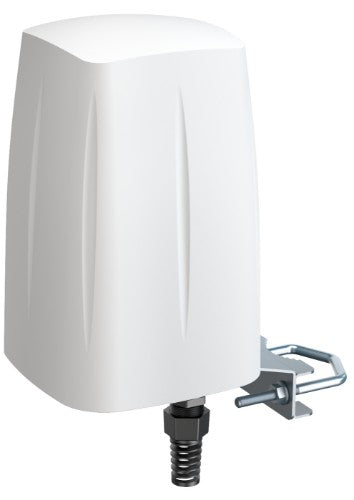

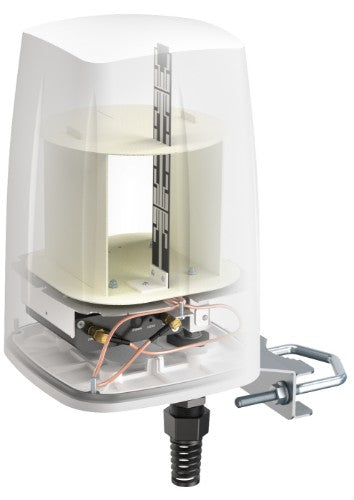

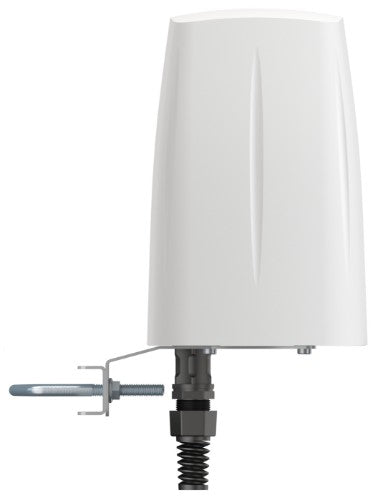

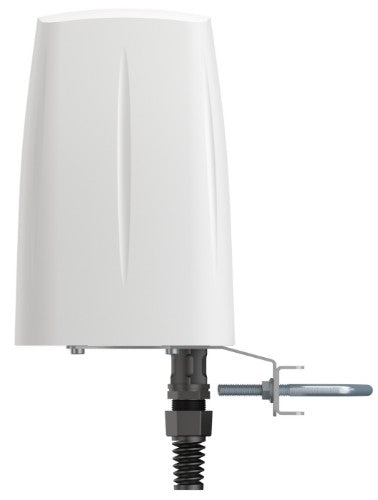

QuSpot omnidirectional LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Description

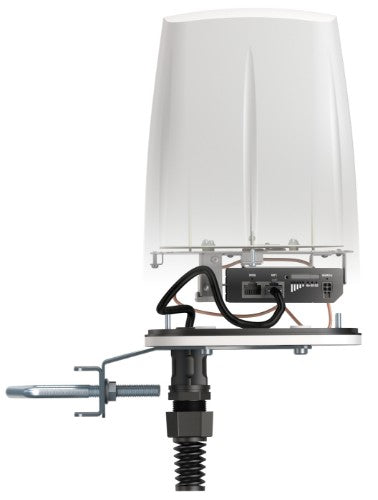

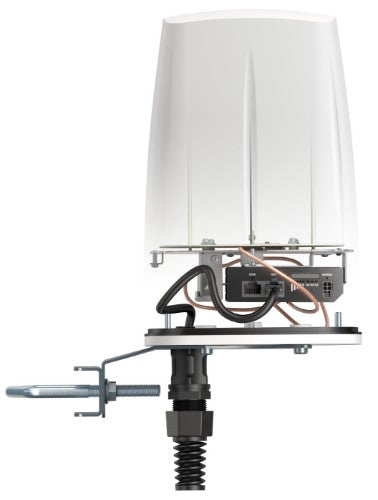

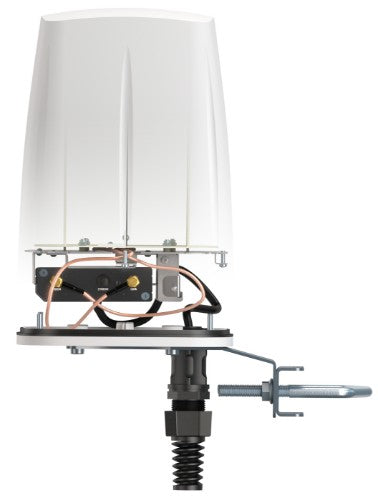

Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT241, RUT240 or 230 (All-in-one)QuSpot omnidirectional LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Country of origin | Poland |
| International Protection (IP) code | IP67 |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Product colour | White |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260 |
| Technical details | |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUT200, RUT230, RUT240, RUT241, RUT260 |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 240 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
