Description
162B9T LCD monitor with SmoothTouch
Reasons To Buy
SmoothTouch display for natural, fluid touch response
This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.Monitor front surface meets IP65 for water and dust resistance
For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.LowBlue Mode for easy-on-the-eyes productivity
Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.SmartContrast for rich black details
SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.DisplayPort connection for maximum visuals
DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.HDMI ensures universal digital connectivity
An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).Description
A sturdy, water and dust resistant touch screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts up productivity.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 220 cd/m² |
| Screen shape | Flat |
| Dynamic contrast ratio marketing name | SmartContrast |
| Display number of colours | 262144 colours |
| Native aspect ratio | 16:9 |
| Pixel density | 100 ppi |
| DDC/CI | Yes |
| Colour gamut | 86% |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 100% |
| Display surface | Gloss |
| HD type | HD |
| Display technology | LCD |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 60° |
| Pixel pitch | 0.252 x 0.252 mm |
| Horizontal scan range | 30 - 60 kHz |
| Vertical scan range | 50 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Digital horizontal frequency | 30 - 60 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Separate H/V sync | Yes |
| Sync-on-green (SOG) | Yes |
| Backlight type | W-LED |
| Display resolution | 1366 x 768 pixels |
| Response time | 4 ms |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 500:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Display diagonal (metric) | 39.6 cm |
| Display sRGB | Yes |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 220 cd/m² |
| Colour gamut standard | sRGB |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Mean time between failures (MTBF) | 70000 h |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Operating system installed | Windows 10 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Low Blue Light technology | Yes |
| Component video sync | Separate sync, Sync-on-green (SOG) |
| Stylus pen hover function | Yes |
| Palm rejection | Yes |
| EasyRead mode | Yes |
| Management features | |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Design | |
| Market positioning | Home |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 70000 h |

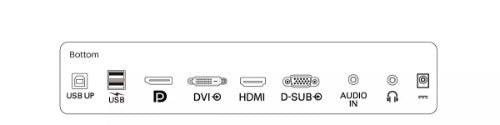

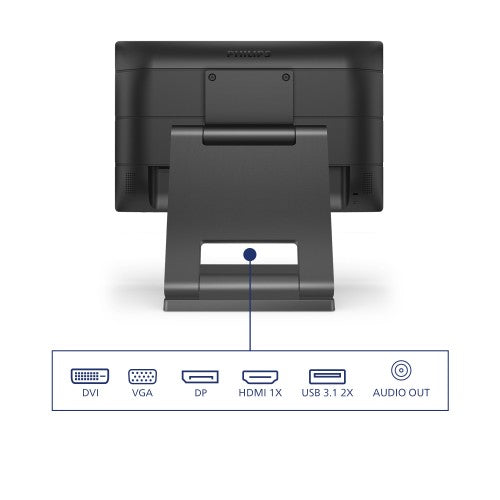

| Ports & interfaces | |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1.4 |
| DisplayPorts quantity | 1.2 |
| HDCP | Yes |
| Headphone outputs | 1 |
| PC Audio in | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| HDCP version | 1.4 |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 241 mm |
| Depth (without stand) | 42 mm |
| Width (without stand) | 378 mm |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Feet colour | Black |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 70000 h |
| HDMI | Yes |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| Product colour | Black |
| Recommended resolution | 1366 x 768 @ 60 Hz |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Front bezel colour | Black |
| Sustainability certificates | ENERGY STAR |
| Doesn't contain | PVC/BFR, Mercury |
| Compliance certificates | RoHS, WEEE |
| Power supply type | External |
| Weight (with stand) | 5 kg |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove |
| Surface hardness | 7H |
| EasyRead mode | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Bundled software | SmartControl |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| LED indicators | Operation, Stand-by |

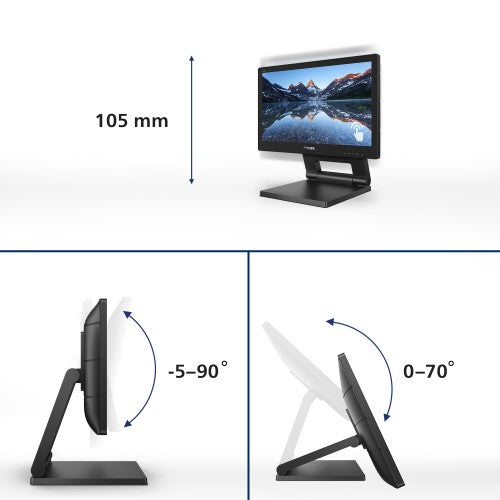

| Tilt angle range | -5 - 90° |
| Number of OSD languages | 21 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Palm rejection area | 25 x 25 mm |
| Adjustable height (max) | 10.5 cm |
| Power | |
| Power supply type | External |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 7.1 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 5.6 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 388111 |
| Operational conditions | |
| Non-operating altitude | 0 - 12192 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Weight & dimensions | |
| Height (without stand) | 241 mm |
| Depth (without stand) | 42 mm |
| Width (without stand) | 378 mm |
| Width (with stand) | 378 mm |
| Depth (with stand) | 227 mm |
| Height (with stand) | 347 mm |
| Weight (with stand) | 5 kg |
| Weight (without stand) | 2.01 kg |
| Package width | 445 mm |
| Package depth | 159 mm |
| Package height | 388 mm |
| Package weight | 6.31 kg |
| Packaging data | |
| Package width | 445 mm |
| Package depth | 159 mm |
| Package height | 388 mm |
| Package weight | 6.31 kg |
| Stand included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Stylus included | Yes |
| Packaging content | |
| Stand included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Bundled software | SmartControl |
| Stylus included | Yes |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 388111 |
| Sustainability certificates | ENERGY STAR |
| Doesn't contain | PVC/BFR, Mercury |
| Indication | |
| LED indicators | Operation, Stand-by |
| Thin Client | |
| Operating system installed | Windows 10 |
| Other features | |
| Heavy metals free | Hg (mercury) |
| Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Dimensions (W x D x H) with stand | 378 x 347 x 227 mm |
| Mean time between failures (MTBF) | 70000 h |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Recommended resolution | 1366 x 768 @ 60 Hz |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
| Folding angle | 70° |
| Touch method | Stylus, Finger, Glove |
| EasyRead mode | Yes |
| International Protection (IP) code | IP65 |
| Height adjustment (vertical mode) | 10.5 cm |
| Height adjustment (horizontal mode) | 18.4 cm |
| Compliance certificates | RoHS, WEEE |
| Energy efficiency class (old) | A |
| Height (without stand) | 241 mm |
| Depth (without stand) | 42 mm |
| Width (without stand) | 378 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Power supply type | External |
| Manual | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
