Description

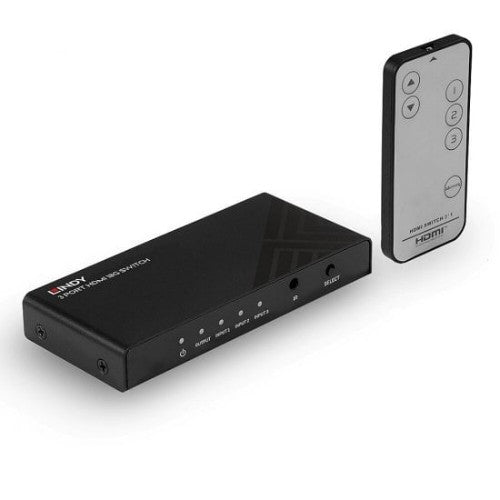

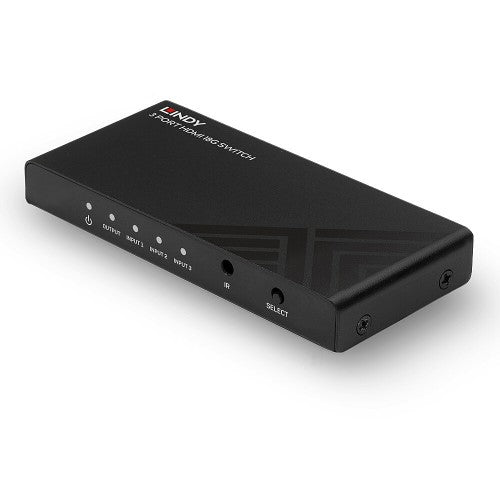

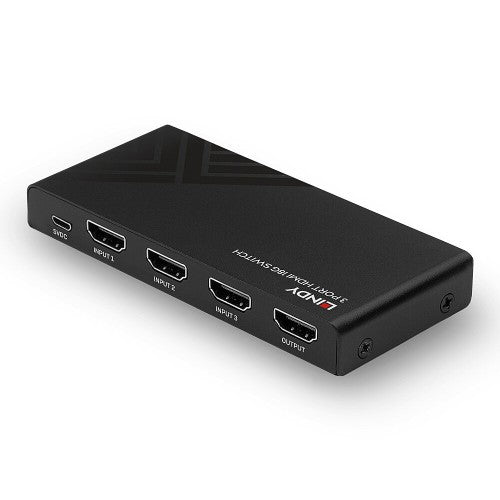

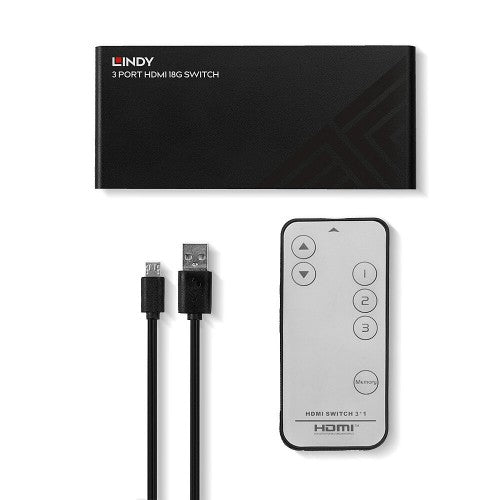

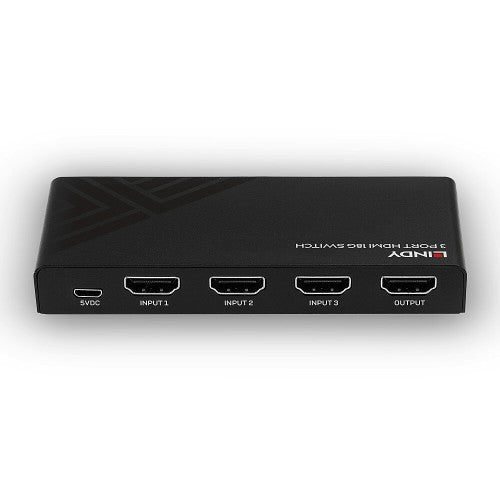

3 Port HDMI 18G Switch
The Lindy 3 Port HDMI 18G switch is a compact, high quality solution for effortlessly switching between 3 HDMI source devices when connected to a single display.
Supporting HDMI 18G signals, this switch allows for the transmission of detailed 4K Ultra HD resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. This switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations. HDCP 2.2 support ensures there are no compatibility issues with a variety of 4K content from source devices including set top boxes, Blu-Ray players and 4K HDR media players.
This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.
Key Features
- Switches between 3 HDMI source devices when connected to a single display
- Supports 18G resolutions up to 4K@60Hz, with additional support for HDR
- Flexible control via push button, IR remote and auto-switching
- Compact, minimalist design to ensure no distraction from the display or installation
- 2 year warranty
Description
HDMI switches are reliable solutions for controlling and switching multiple HDMI source devices and outputting to a single display.The Lindy 3 Port HDMI 18G switch is a compact, high quality solution for effortlessly switching between 3 HDMI source devices when connected to a single display.
Supporting HDMI 18G signals, this switch allows for the transmission of detailed 4K Ultra HD resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. This switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations. HDCP 2.2 support ensures there are no compatibility issues with a variety of 4K content from source devices including set top boxes, Blu-Ray players and 4K HDR media players.
This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 2.0 |
| HDMI ports quantity | 4 |
| Number of HDMI outputs | 1 |
| HDMI in | 3 |
| DC-in jack | Yes |
| Features | |
| HD type | 4K Ultra HD |
| Remote control type | RF |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| External power adapter | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP version | 2.2 |
| Certificates | |
| Certification | CE, FCC, REACH & California Proposition 65 |
| Weight & dimensions | |
| Width | 80 mm |
| Height | 20 mm |
| Depth | 51 mm |
| Weight | 108 g |
| Package width | 170 mm |
| Package height | 60 mm |
| Package depth | 120 mm |
| Package weight | 405 g |
| Technical details | |
| HD type | 4K Ultra HD |
| Remote control type | RF |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Width | 80 mm |
| Height | 20 mm |
| Depth | 51 mm |
| Product colour | Black |
| Video port type | HDMI |
| Material | Metal |
| LED indicators | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 4 |
| HDCP | Yes |
| Remote control included | Yes |
| External power adapter | Yes |
| Bandwidth | 18 Gbit/s |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 170 mm |
| Package height | 60 mm |
| Package depth | 120 mm |
| Package weight | 405 g |
| Packaging content | |
| Manual | Yes |
| Remote control included | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
