Lindy KVM Over IP Extender - Transmitter

KVM Over IP Extender - Transmitter

Key Features

• Extends HDMI 4K30, USB HID and IR Over an IP network
• Supports point to point and point to multipoint installation up to 150m (492.12ft)
• HDMI 1.4 and HDCP 1.4 compliant
• Requires a Gigabit Ethernet (1000BaseT) compliant network for multipoint installation
• 2 year warranty

Description

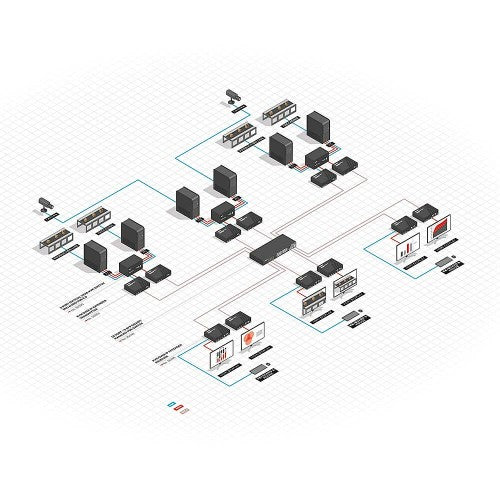

The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This transmitter unit must be connected to one or more receiver units (No. 38265 not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It's also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter to be controlled by several consoles each connected to a receiver unit (No. 38265 - not included) via a dedicated Ethernet switch or VPN.

This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.

Specifications

Features
Type	Transmitter
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black
Material	Metal
Transmitter
Transmitter video port type	HDMI
RJ-45 ports quantity (transmitter)	1
Power
AC input voltage	5 V
Power plug type	Type A
Input current	2 A
Operational conditions
Storage temperature (T-T)	-10 - 75 °C
Technical details
Weight	200 g
Dimensions (WxDxH)	124 x 85 x 24 mm
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
