Description
SFP, PoE, Micro USB, LAN: 4x 10/100/1000 Mbps, WAN: 1x 10/100/1000 Mbps, 12V, 2A

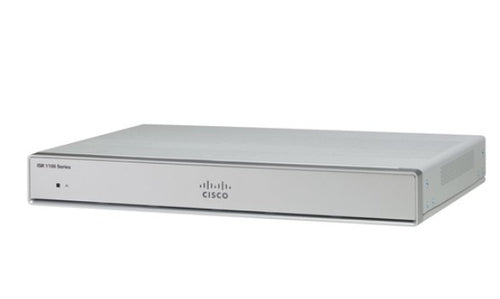

The Cisco® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.
Description
Cisco 1000 Series Integrated Services RoutersThe Cisco® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Network | |
| Network Address Translation (NAT) sessions (max) | 100 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 400 user(s) |
| Ethernet LAN | Yes |
| Forwarding rate | 1372 Mpps |
| Ethernet interface type | Gigabit Ethernet |
| Memory | |
| Flash memory | 4000 MB |
| Internal memory | 4000 MB |
| Performance | |
| Flash memory | 4000 MB |
| Internal memory | 4000 MB |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Technical details | |
| LED indicators | Yes |
| Product colour | Silver |
| Security | |
| Firewall | Yes |
| Security algorithms | 802.1x RADIUS, IPSec, WPA2-AES, WPA2-RADIUS |
| VPN tunnels quantity | 100 |
| Access Control List (ACL) | Yes |
| Network Address Translation (NAT) sessions (max) | 100 |
| Features | |
| Flash memory | 4000 MB |
| Internal memory | 4000 MB |
| Design | |
| LED indicators | Yes |
| Product colour | Silver |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 18.8 W |
| Power consumption (max) | 66 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4572 m |
| Weight & dimensions | |
| Width | 322 mm |
| Depth | 226 mm |
| Height | 41.9 mm |
| Weight | 860 g |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
