StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBase-BX (Upstream)~MSA Uncoded SFP+ Module - 10GBASE-BX - 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+ (Upstream) - LC 10km

StarTech.com MSA Uncoded SFP+ Module - 10GBASE-BX - 10 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP+ (Upstream) - LC 10km (SFP-10GB-BX-U-STA-ST)

Key Features

• MSA UNCODED SFP+ TRANSCEIVER: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
• INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
• TECHNICAL SPECS: 10GBASE-BX / 10Gbps / 10G Bi-Directional Upstream / Single Mode (SMF) / LC Connector / 1270nmTx/1330nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
• WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules

Description

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

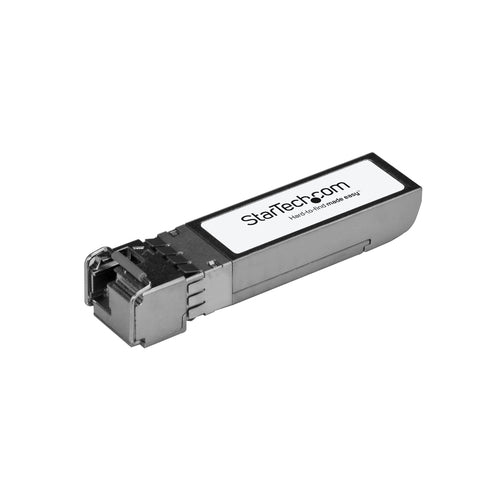

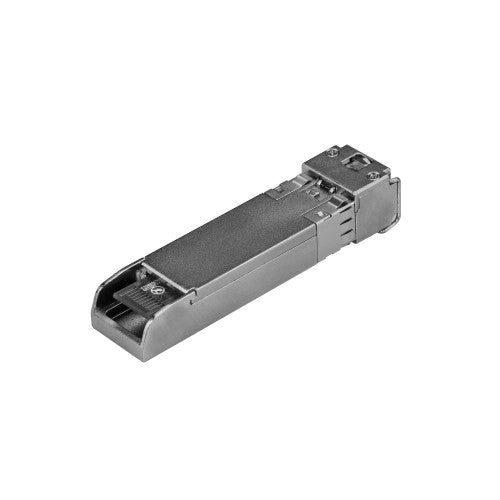

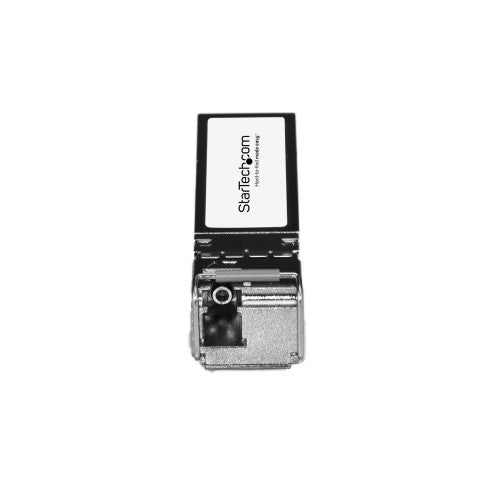

The SFP-10GB-BX-U-STA-ST is a MSA compliant upstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10GB-BX-D-STA-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1270nmTx/1330nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption:
• DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

Performance
SFP transceiver type	Fiber optic
Tx wavelength (min)	1270 nm
Rx wavelength (min)	1330 nm
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Maximum transfer distance	10000 m
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
SFP transceiver standard	BX-U
Product colour	Silver
Hot-swap	Yes
Brand compatibility	MSA Compliant
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Hot-swap	Yes
Brand compatibility	MSA Compliant
Certification	CE, FCC, UL
Power
Power consumption (typical)	1.3 W
Certificates
Certification	CE, FCC, UL
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Weight	24 g
Package depth	115 mm
Package width	90 mm
Package height	31 mm
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	90 mm
Package height	31 mm
Hot-swap	Yes
Maximum transfer distance	10000 m
Packaging data
Package depth	115 mm
Package width	90 mm
Package height	31 mm
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85369010
