Description
Antenna QuSpot for Teltonika RUTX11

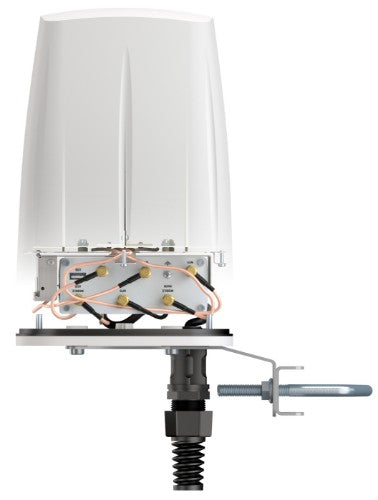

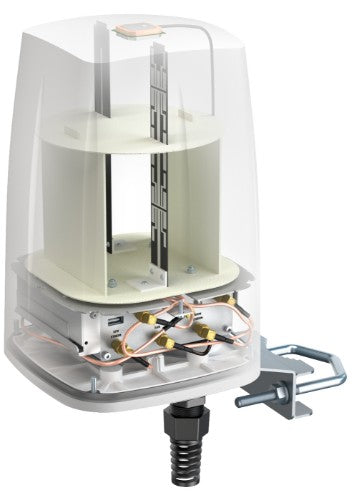

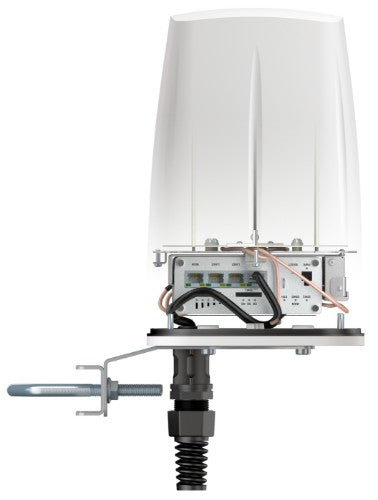

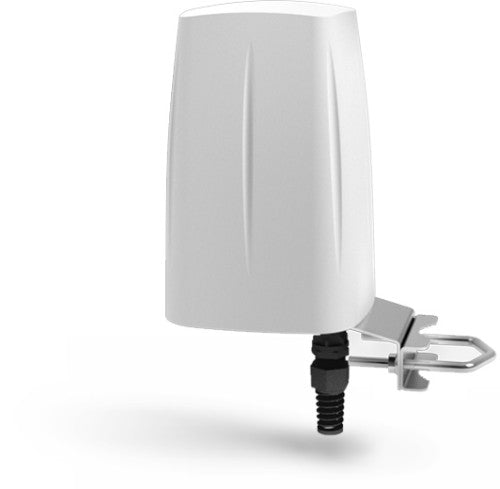

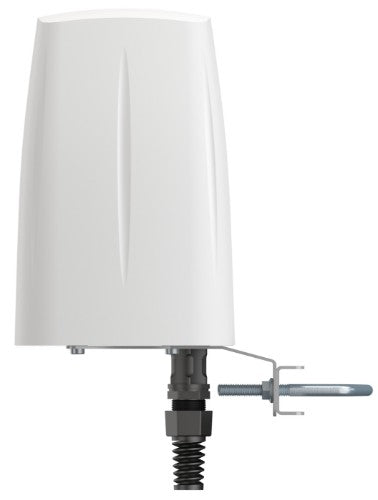

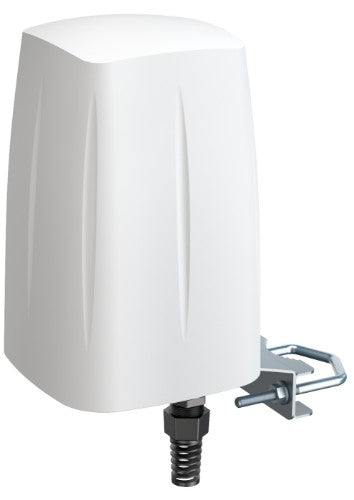

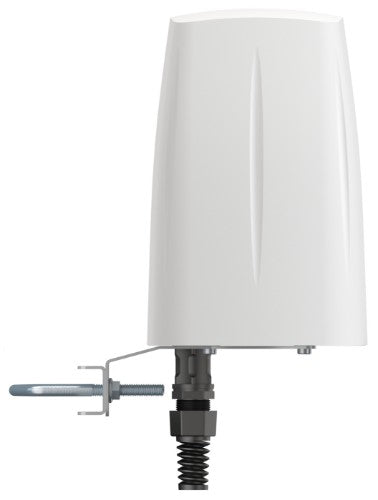

QuSpot omni LTE antenna for Teltonika RUTX11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna, GPS antenna and Bluetooth antenna. If you use RUTX11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Description
Integrated multi-band LTE omni antenna + WiFi omni antenna + GPS antenna + Bluetooth antenna + place to install Teltonika RUTX11 (All-in-one)QuSpot omni LTE antenna for Teltonika RUTX11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna, GPS antenna and Bluetooth antenna. If you use RUTX11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Features | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Country of origin | Poland |
| International Protection (IP) code | IP67 |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Product colour | White |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX11 |
| Technical details | |
| Antenna gain level (max) | 4 dBi |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 25° |
| Vertical beam width | 35° |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 360° |
| Horizontal beam width (2.4 GHz) | 360° |
| Horizontal beam width | 360° |
| Gain | 2 / 4 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Compatible products | RUTX11 |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 240 mm |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
