Description

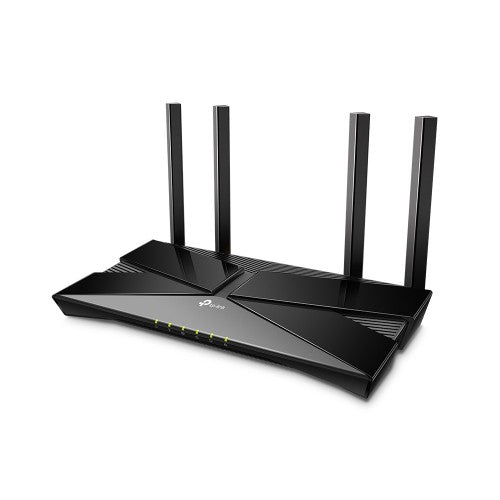

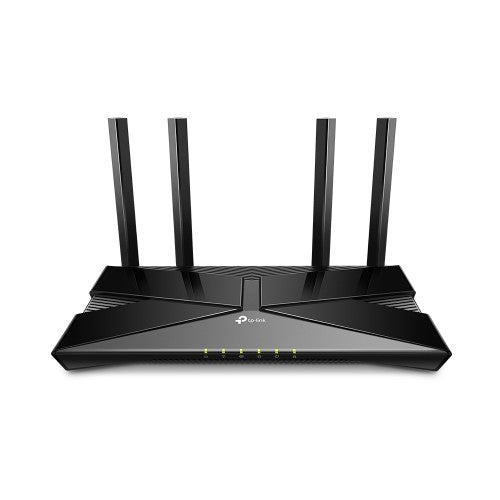

TP-Link Archer AX1500 Dual-Band Wi-Fi 6 Router, Black
Key Features
- Flexibly creates a mesh network by connecting to an easymesh
- Coverage 4 antennas and beamforming technology focus signal
- Dozens of devices more simultaneous connections
- Full gigabit ports take full advantages of broadband speeds up to 1 gbps
- Easy setup finish your network upgrade in minutes with tether app
Description

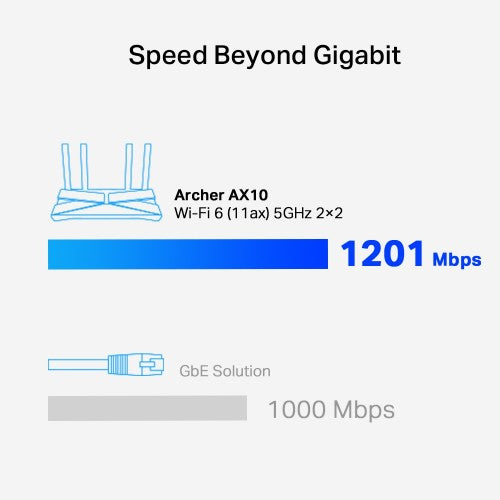

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down and enjoy the future network that loads faster and connects more. The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop and enjoy speeds comparable to plugging in an Ethernet cable. Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds and instantaneous video loading on different devices—all at the same time. A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting. Get Next-Gen Wi-Fi speeds up to 1.5 Gbps. Instant response to all your network activity with a 1.5 GHz triple-core CPU. Broader Coverage 4 antennas and beamforming technology focus signal towards individual clients for broader coverage. Connect Dozens of devices more simultaneous connections and higher average throughput with ofdma. Full gigabit ports take full advantages of broadband speeds up to 1 gbps. Easy setup finish your network upgrade in minutes with tether app. Easy and Smart Connect a new device to your Wi-Fi without using the password, but your voice. EasyMesh-Compatible Flexibly creates a mesh network by connecting to an easymesh-compatible router for seamless whole-home coverage.Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Guest access | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Receiver sensitivity | 5 GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Dynamic DNS (DDNS) | Yes |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Reset button | Yes |
| Performance | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Processor frequency | 1500 MHz |
| Processor cores | 3 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Built-in processor | Yes |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
| Memory card slot(s) | No |
| Weight & dimensions | |
| Package width | 124 mm |
| Package weight | 780 g |
| Package height | 38 mm |
| Package depth | 300 mm |
| Width | 260 mm |
| Weight | 370 g |
| Height | 33 mm |
| Depth | 126 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Packaging content | 1 x TP-Link Archer AX1500 Wi-Fi 6 Router, Black |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1500 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| USB port | No |

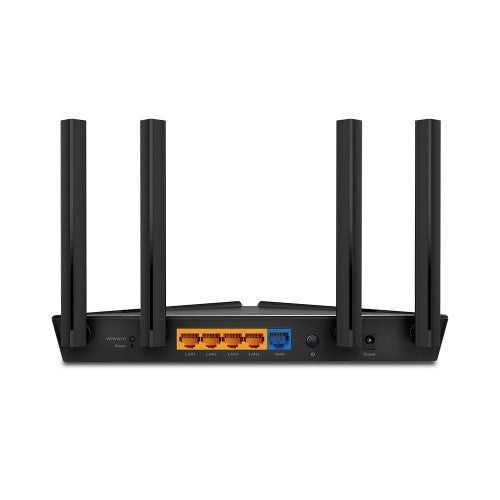

| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Memory card slot(s) | No |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Guest access | Yes |
| Firewall security | SPI |
| Firewall | Yes |
| DMZ support | Yes |
| Design | |
| Product type | Tabletop router |
| On/off switch | Yes |
| Country of origin | Malaysia |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Software | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Other features | |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Transmit power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz); FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| Features | |
| Processor frequency | 1500 MHz |
| Processor cores | 3 |
| Certification | FCC, CE, RoHS |
| Built-in processor | Yes |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Packaging data | |
| Package width | 124 mm |
| Package weight | 780 g |
| Package height | 38 mm |
| Package depth | 300 mm |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Country of origin | Malaysia |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
