Description

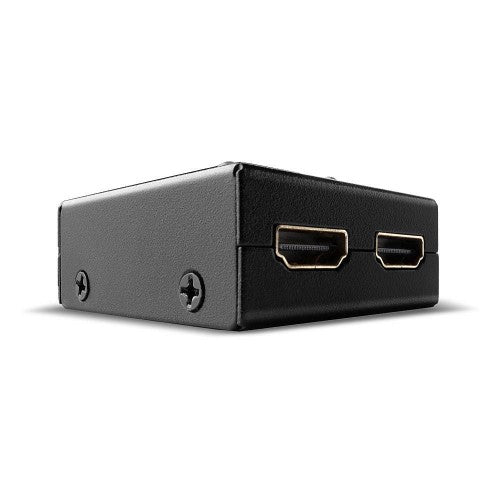

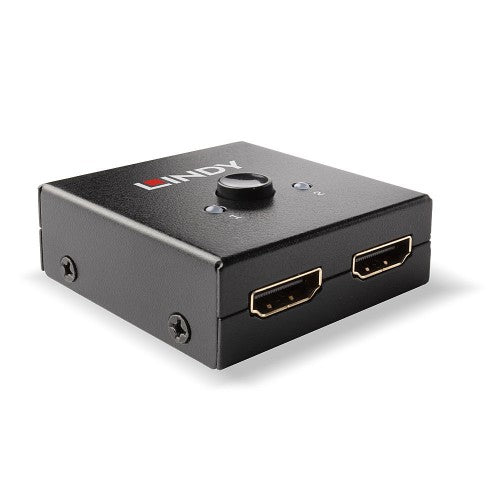

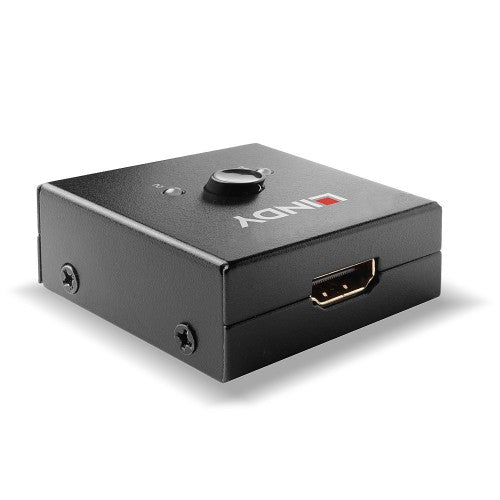

2 Port HDMI 18G Bi-Directional Switch
With support for resolutions up to 4K 3840x2160 @60Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
The switch's minimalistic design, with no external power requirement, allows for a clean, discreet installation.
Key Features
- Switches between two source devices to one output, or one source device to two outputs
- Supports resolutions up to 4K 3840x2160 @60Hz
- Supports HDMI audio pass-through
- No external power supply required, for easy and discreet installation
- 2 year warranty
Description
The Lindy HDMI 18G Bi-directional Switch allows the user to connect two 4K Ultra High Definition source devices such as Blu-Ray players or games consoles to a single 4K Ultra HD display or projector and easily switch between them at the push of a button. Alternatively, connect one 4K Ultra HD source can be connected to two 4K Ultra HD displays or projectors and switch between displays at the touch of a button.With support for resolutions up to 4K 3840x2160 @60Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
The switch's minimalistic design, with no external power requirement, allows for a clean, discreet installation.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| Number of HDMI outputs | 1 |
| HDMI in | 2 |
| Features | |
| HD type | 4K Ultra HD |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 18 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Certificates | |
| Certification | CE, FCC, REACH, California Proposition 65 |
| Weight & dimensions | |
| Width | 49 mm |
| Height | 20 mm |
| Depth | 52 mm |
| Weight | 700 g |
| Package width | 63.5 mm |
| Package height | 28 mm |
| Package depth | 80 mm |
| Package weight | 840 g |
| Technical details | |
| HD type | 4K Ultra HD |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Width | 49 mm |
| Height | 20 mm |
| Depth | 52 mm |
| Product colour | Black |
| Video port type | HDMI |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Material | Metal |
| LED indicators | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 3 |
| HDCP | Yes |
| Bandwidth | 18 Gbit/s |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 63.5 mm |
| Package height | 28 mm |
| Package depth | 80 mm |
| Package weight | 840 g |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
