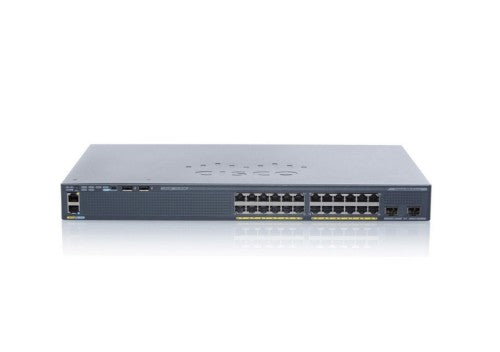

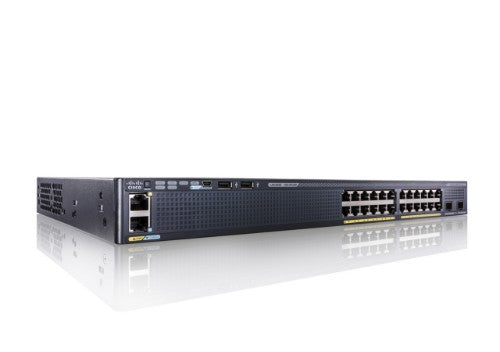

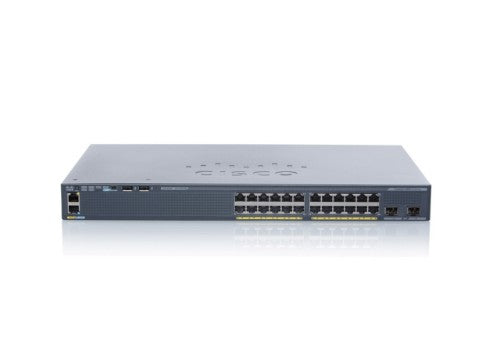

Catalyst 2960X-24TS-L Network Switch, 24 Gigabit Ethernet Ports, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24TS-L)
Description
The Cisco Catalyst 2960X-24TS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Number of VLANs | 1023 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 71.4 Mpps |
| Number of static routes | 1000 |
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Number of multicast groups filtered | 1000 |
| Number of VLANs | 1023 |
| Security | |
| Authentication | MAC-based authentication, Port-based authentication |
| Access Control List (ACL) rules | 3 |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SSH |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Number of multicast groups filtered | 1000 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv3 |
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Design | |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Market segment | Business |
| Country of origin | China |
| Performance | |
| Physical stacking (units) | 8 |
| Processor frequency | 600 MHz |
| Noise level | 42 dB |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 564910 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Processor model | AppliedMicro APM8639 |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power plug type | Type C |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 36.9 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Other features | |
| Power LED | Yes |
| Country of origin | China |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 1023 |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 279 mm |
| Height | 45 mm |
| Weight | 4 kg |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package width | 390.7 mm |
| Package depth | 549.4 mm |
| Package height | 147.6 mm |
| Package weight | 5.4 kg |
| User guide | Yes |
| Cables included | AC |
| Technical details | |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 600 MHz |
| Noise level | 42 dB |
| Mean time between failures (MTBF) | 564910 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Certificates | |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Memory | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Indication | |
| Power LED | Yes |
| LED indicators | Yes |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
