Description
HC Full Touch PDA, EMEA + ROW, Wi-Fi + LTE, Ultra-slim MP 2D Imager w Green Spot, Android 8.1 with GMS, White
The Memor 10 PDA brings the power and performance of a smartphone with the user-friendly experience of Android in a slim and compact device with an integrated 2D imager. It also incorporates Datalogic’s industry-first wireless charging system for ultra-reliable contactless charging, paired with a 1-piece swappable battery for the best operating advantage.
The Memor 10 PDA also includes a state-of-the-art octa-core platform, featuring Android 8.1 (Oreo) with Google Mobile Services. These specs led to the endorsement by Google, who validated the Memor 10 PDA as one of the first mobile computers to join their ‘Android Enterprise Recommended’ program for rugged devices!
The Memor 10 PDA is also available in a Healthcare version which includes the same features with a cleanable enclosure and dedicated accessories.
Key Features
- Datalogic Shield™ is a new software service from Datalogic that extends the lifecycle of our Android products, offering customers years of protection on their rugged device investment
- The Memor 10 implements Android 8.1 Oreo and is the first Datalogic mobile computer offering Google Mobile Services applications and API’s
- The high performance octa-core 2 GHz processor used in the Memor 10 easily supports the most power-hungry mobile applications and is enabled with advanced wireless communications such as 802.11ac Wi-Fi and LTE-Advanced for cellular networks

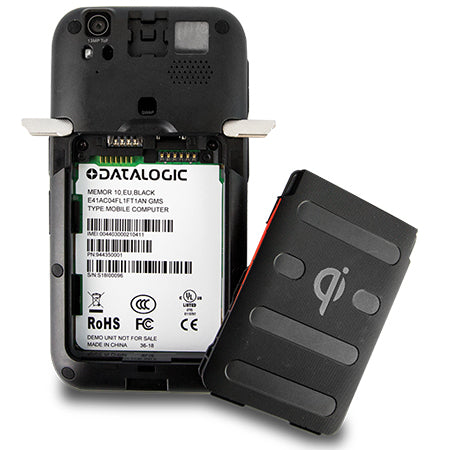

- Wireless charging is now a reality and Datalogic is the first in our industry to implement this advanced technology; The Memor 10 PDA is the first device in the world to pair wireless charging technology with a one-piece swappable battery, allowing 24/7 usage
- The Memor 10 PDA is also available in a white Healthcare model with chemical-resistant plastics designed to withstand daily cleaning with harsh disinfectant solutions

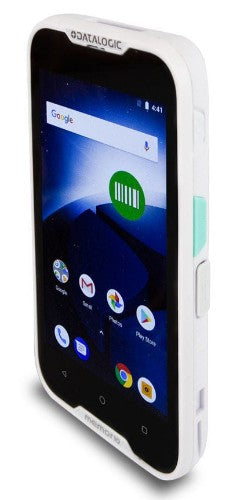

- The Memor 10 PDA features a smartphone-like form factor with a crystal clear 5” HD display coupled with a slim and compact design
Description
The superior performance of this Android™ full touch PDA is able to support a multitude of applications in various environments.The Memor 10 PDA brings the power and performance of a smartphone with the user-friendly experience of Android in a slim and compact device with an integrated 2D imager. It also incorporates Datalogic’s industry-first wireless charging system for ultra-reliable contactless charging, paired with a 1-piece swappable battery for the best operating advantage.
The Memor 10 PDA also includes a state-of-the-art octa-core platform, featuring Android 8.1 (Oreo) with Google Mobile Services. These specs led to the endorsement by Google, who validated the Memor 10 PDA as one of the first mobile computers to join their ‘Android Enterprise Recommended’ program for rugged devices!
The Memor 10 PDA is also available in a Healthcare version which includes the same features with a cleanable enclosure and dedicated accessories.
Specifications
| Display | |
|---|---|
| Touchscreen type | Capacitive |
| Touch technology | Multi-touch |
| Display | IPS |
| Touchscreen | Yes |
| Display resolution | 720 x 1280 pixels |
| Display diagonal | 12.7 cm (5") |
| Memory | |
| Internal memory | 3 GB |
| Compatible memory cards | MicroSDHC |
| Flash memory | 32 GB |
| Processor | |
| Processor frequency | 2 GHz |
| Built-in processor | Yes |
| Number of cores | 8 |
| Network | |
| Near Field Communication (NFC) | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Operating frequency | 2400/5000 MHz |
| Data network | LTE |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| GPS Performance | |
| GPS (satellite) | Yes |
| Camera | |
| Built-in flash | Yes |
| Auto focus | Yes |
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Performance | |
| Barcode reader | Yes |
| Drop proof | Yes |
| Drop proof | 150 cm |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Linear (1D) barcodes supported | GS1 DataBar |
| International Protection (IP) code | IP65 |
| Product colour | White |
| Vibrating alert | Yes |
| Certification | EU RoHS |
| Chemical-resistant | Yes |
| Qi compliant | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Gyroscope | Yes |
| Software | |
| Operating system version | 8.1 |
| Operating system installed | Android |
| Power | |
| Battery voltage | 3.8 V |
| Battery capacity | 4100 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Wireless charging | Yes |
| Fast charging | Yes |
| Weight & dimensions | |
| Width | 78 mm |
| Depth | 18.7 mm |
| Height | 155 mm |
| Weight | 285 g |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Wireless LAN features | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Data transmission | |
| Data network | LTE |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Technical details | |
| Barcode reader | Yes |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Drop proof | Yes |
| Drop proof | 150 cm |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Linear (1D) barcodes supported | GS1 DataBar |
| International Protection (IP) code | IP65 |
| Product colour | White |
| Vibrating alert | Yes |
| Certification | EU RoHS |
| Chemical-resistant | Yes |
| Qi compliant | Yes |
| Harmonized System (HS) code | 84713000 |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
