Description

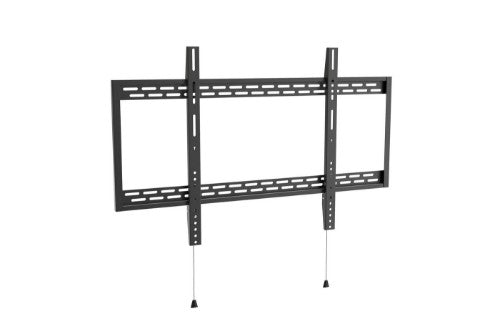

Pro Large Wall Mount, Max 125 kg, Up to VESA 900x600
For large Signage screens.
Max loading capacity: 125kg.
Key Features
- For large curved & flat panel TVs
- Typical screen size 60”- 100”
- VESA 200x200, 300x300, 400x200, 400x400, 600x400, 800x400, 800x600, 900x600

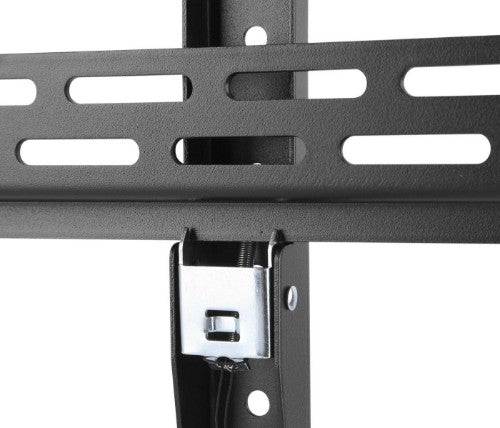

- Click-in spring lock with easily-release cord
- Steel profile 32mm
- Max loading capacity 125kgs
Description
Public area, such as hotel, shopping mall, trade fair, ect.For large Signage screens.
Max loading capacity: 125kg.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 152.4 cm (60") |
| Panel mounting interface | 200 x 200 mm |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 900 x 600 mm |
| Maximum screen size | 2.54 m (100") |
| Maximum weight capacity | 125 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Distance to the wall (max) | 3.2 cm |
| Technical details | |
| Number of displays supported | 1 |
| Distance to the wall (max) | 3.2 cm |
| Product colour | Black |
| Mounting interface | VESA |
| Mounting type | Wall |
| Adjustable | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Screws included | Yes |
| User guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width | 1009 mm |
| Depth | 32 mm |
| Height | 630 mm |
| Weight | 4.9 kg |
| Depth (max) | 3.2 cm |
| Packaging data | |
| Package width | 1110 mm |
| Package depth | 410 mm |
| Package height | 40 mm |
| Package weight | 5 kg |
| User guide | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| VESA mounting | Yes |
| Mounting type | Wall |
| Adjustable | Yes |
| Mounting interface | VESA |
