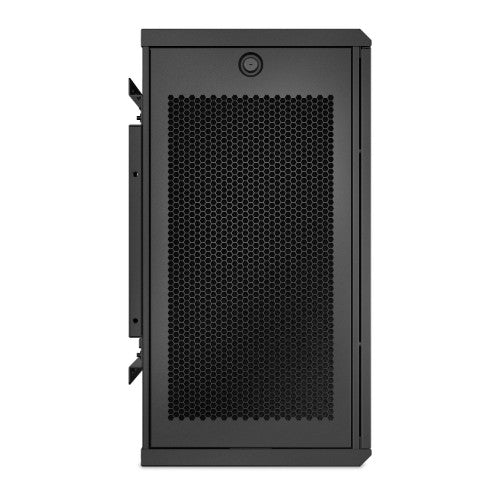

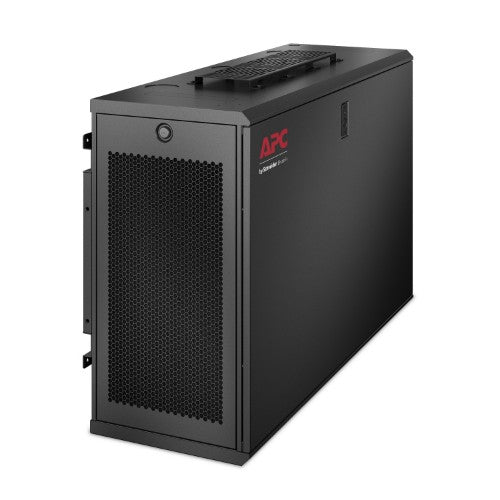

NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet 230V Server Depth
Key Features
- Compact, Low-Profile Design
- Supports latest generation edge server and
- networking equipment up to 30” (762mm)
- NetBotz Physical Security Options
- High Weight Load Capacity – up to 250lb
- (113kg)
- Pre-Integration Capability
- Replaceable dust filter

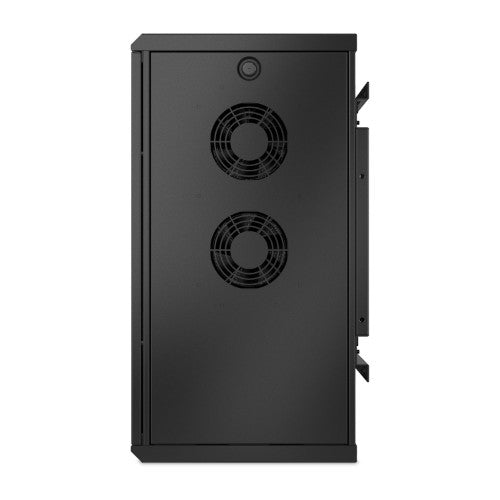

- Integrated fans
- Wall Mount or Floor Standing Configuration
- Bracket for non-rack mounted equipment
- Lithium Ion UPS options

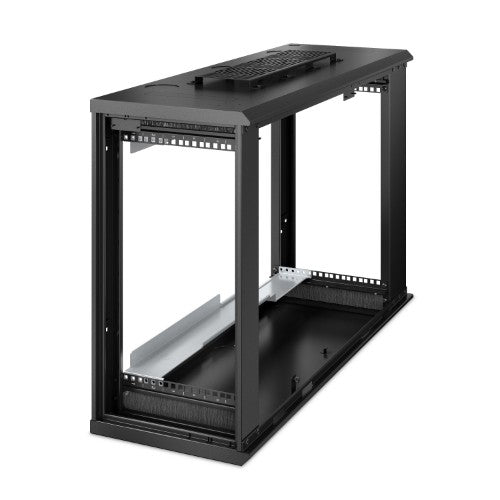

- 4-Post design for sharable rack U space
- Detachable wall bracket for easy installation
- UL2416 Listed
Description

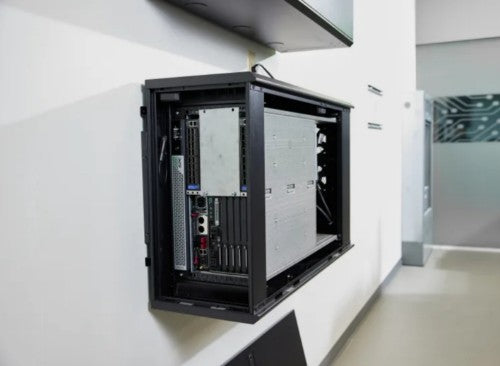

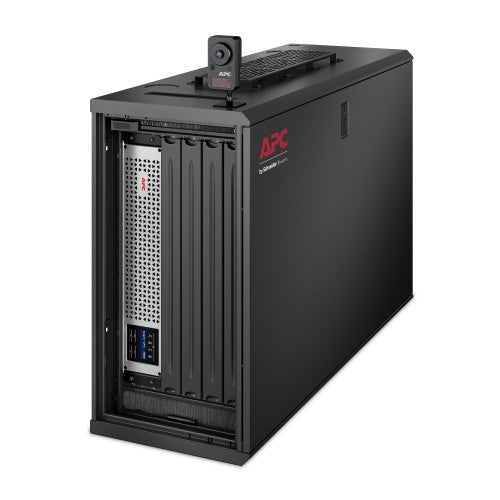

APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets It can ship pre-integrated with APC Smart UPS battery backup, NetBotz Physical and Environmental Security, and EcoStruxure IT, our cloud-based remote monitoring platform to stay connected at the Edge!
Specifications
| Features |
|---|
| Size (imperial) |
48.3 cm (19") |
| Number of fans |
2 fan(s) |
| Key lock |
Yes |
| Rack capacity |
6U |
| Front door construction |
Perforated |
| Type |
Wall mounted rack |
| Maximum weight capacity |
113 kg |
| Material |
Steel |
| Cooling type |
Active |
| Product colour |
Black |
| Preassembled |
Yes |
| Weight & dimensions |
|---|
| Package depth |
734 mm |
| Package width |
1064 mm |
| Package height |
427 mm |
| Package weight |
44.9 kg |
| Mounting depth (max) |
76.2 cm |
| Mounting depth (min) |
76.2 cm |
| Width |
353 mm |
| Depth |
968 mm |
| Height |
648 mm |
| Weight |
36.3 kg |
| Size (imperial) |
48.3 cm (19") |
| Maximum weight capacity |
113 kg |
| Power |
|---|
| AC input voltage |
230 V |
| AC input frequency |
50 Hz |
| Packaging data |
|---|
| Package depth |
734 mm |
| Package width |
1064 mm |
| Package height |
427 mm |
| Package weight |
44.9 kg |
| Technical details |
|---|
| Package width |
1064 mm |
| Package height |
427 mm |
| Type |
Wall mounted rack |
| Size (imperial) |
48.3 cm (19") |
| Cooling type |
Active |
| Harmonized System (HS) code |
85381000 |
| Total carbon footprint (kg of CO2e) |
136.27 |
| Compliance certificates |
RoHS |
| Rack capacity |
6U |
| Colour |
|---|
| Product colour |
Black |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Harmonized System (HS) code |
85381000 |
