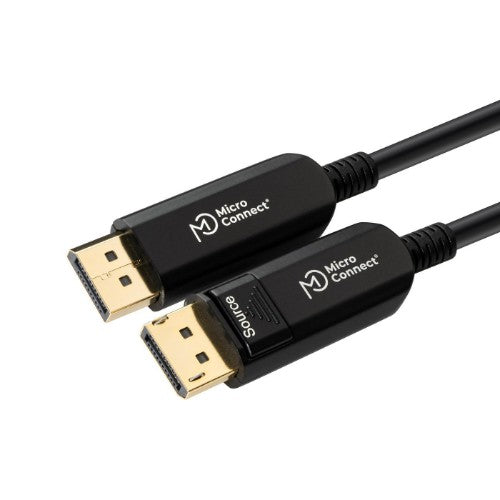

Premium Optic Fiber DisplayPort 1.4 Cable, 25m
Key Features
- Supporting 8K60Hz, 32.4Gbps
- Sampling : YUV 4:4:4
- Outer Diameter: 4,8mm, very flexible
- Support DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
- Supports EDID, HDCP (2.2), HDR (High Dynamic Range ), HBR3
- Hybrid optical cable with fibre and copper wire

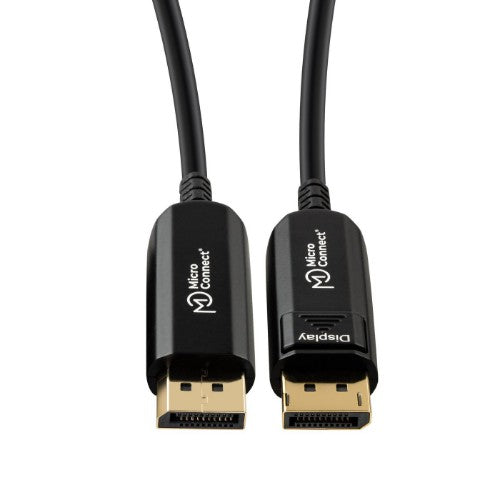

- Has Source & Display clearly printed on the connector for easy identification
- No loss of signal – delivering crystal clear digital images instantly
- Low RFI / EMI profile for sensitive applications
- Has high pulling strength and compression load
Description
This active optical DisplayPort 1.4 cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has an ultra-small bend radius which makes it perfectly suitable for all kinds of installations.
Specifications
| Features |
|---|
| Latching connectors |
Yes |
| DisplayPort Content Protection (DPCP) |
Yes |
| Product colour |
Black |
| Cable length |
25 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Cable material |
Fiber optic |
| Jacket material |
Polyvinyl chloride (PVC) |
| DisplayPort version |
1.4 |
| Data transfer rate |
32.4 Gbit/s |
| 3D |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Supported graphics resolutions |
4096 x 2160, 7680 x 4320 |
| Supported video modes |
2160p, 4320p |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Maximum refresh rate |
120 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
4.8 mm |
| Weight |
1.1 kg |
| Package weight |
1.22 kg |
| Package width |
239 mm |
| Package depth |
229 mm |
| Package height |
81 mm |
| Packaging data |
|---|
| Cable diameter |
4.8 mm |
| Package weight |
1.22 kg |
| Weight |
1.1 kg |
| Package width |
239 mm |
| Package depth |
229 mm |
| Package height |
81 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
