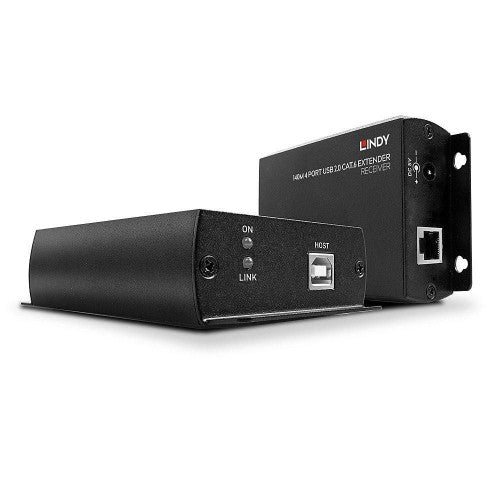

Lindy 140m 4 Port USB 2.0 Cat.6 Extender

140m 4 Port USB 2.0 Cat.6 Extender

Key Features

• Extends the distance of 4 USB 2.0 peripherals by up to 140m
• Connect devices using standard Cat.6 UTP or higher network cables (not included)
• Supports USB 2.0 High-Speed transfer rates up to 480Mbps
• Robust aluminium housing with mounting points

Description

The Lindy USB 2.0 Cat.6 Extender extends the distance between four USB peripheral devices and a PC over distances up to 140m using a single Cat.6 UTP or higher network cable. Cat.5e UTP/STP cable can be used in lengths up to a maximum of 120m. For best performance and compatibility, we recommend the use of solid core patched cables. For best performance and compatibility, we recommend the use of solid core patched cables.

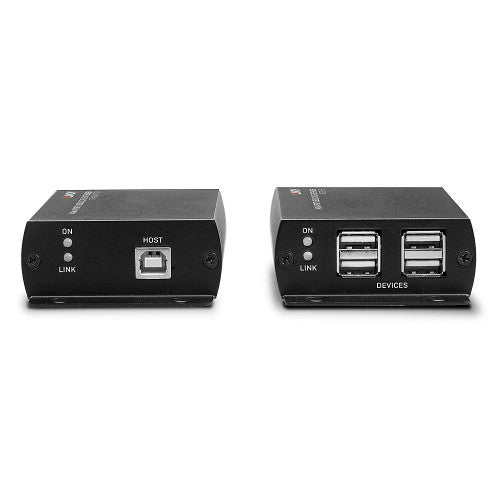

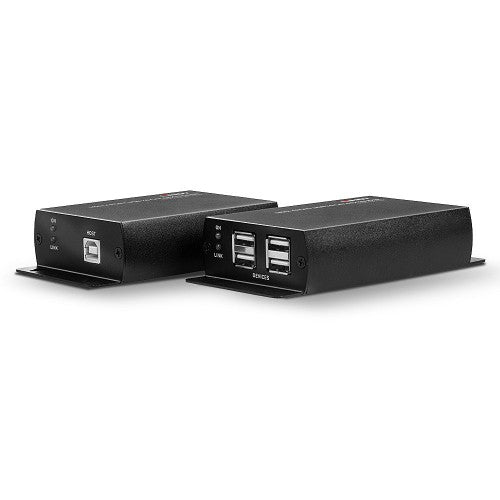

This Extender is a two-part hardware solution comprising of a transmitter that connects directly to your computer and a receiver that connects to the USB device.

With a robust aluminium housing and mounting points, it is the ideal solution for providing remote access to printers, scanners, webcams* and external HDD and flash drive storage. The Extender is also perfect for digital signage applications, home network integration, industrial control, security, USB device sharing, and KVM extension. The included power supply for the receiver unit ensures secure and uninterrupted power to all devices.

*tested with Logitech C310, Logitech C920e, V-Gear Talkcam LIVE 09-VTL480, I-Family IF-008B



























For the latest firmware fixing compatibility issue, please contact our support team.

Please note: Through the use of the Signal Repeater No. 42709 distances can be doubled up to 280m.

Information about USB 3.0, 3.1 and 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	140 m
Cable types supported	Cat5e, Cat6
Product colour	Black
Material	Aluminium
Certification	CE, FCC, RoHS & REACH, CP65
USB 2.0 ports quantity	5
USB data transfer rates	480 Mbit/s
LED indicators	Yes
Transmitter

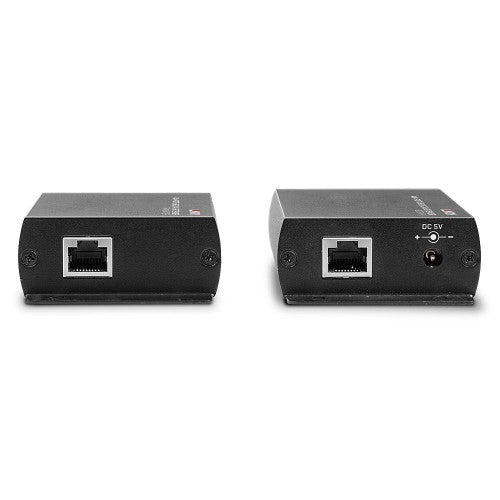

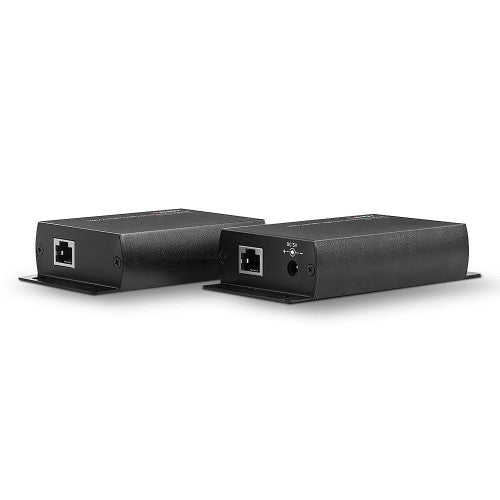

RJ-45 ports quantity (transmitter)	1
Receiver
RJ-45 ports quantity (receiver)	1
Power
AC adapter output voltage	5 V
AC adapter output current	2.6 A
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Transmitter width	12 cm
Transmitter depth	6.7 cm
Transmitter height	2.7 cm
Transmitter weight	190 g
Receiver width	13 cm
Receiver depth	6.7 cm
Receiver height	2.7 cm
Receiver weight	210 g
Package width	240 mm
Package depth	150 mm
Package height	55 mm
Package weight	1.32 kg
Technical details
Harmonized System (HS) code	84733080
Packaging data
AC adapter included	Yes
Cables included	USB Type-A to USB Type-B
Manual	Yes
Package width	240 mm
Package depth	150 mm
Package height	55 mm
Package weight	1.32 kg
Packaging content
AC adapter included	Yes
Cables included	USB Type-A to USB Type-B
Manual	Yes
Included power plug types	EU, UK, US
Logistics data
Harmonized System (HS) code	84733080
