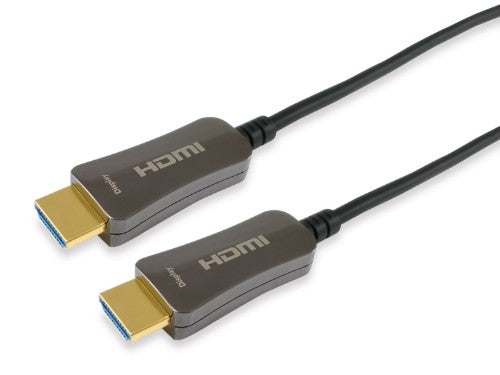

2x HDMI 2.0, HEC, 4K/60Hz, 18Gbps, 3D, HDCP2.2, HDR, 30 m
Key Features
- HDMI Male to Male
- HDMI 2.0 compatible
- Supports HDMI Ethernet Channel (HEC)
- Supports video resolutions up to 4K/60Hz
- Bandwidth up to 18Gbps
- Supports 3D display, HDCP2.2 and HDR
- Zinc Alloy housing
Description
The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply.
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDMI Ethernet channel |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Product colour |
Black |
| Cable length |
30 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Cable material |
Copper |
| HDMI version |
2.0 |
| Data transfer rate |
18 Gbit/s |
| 3D |
Yes |
| HDCP |
Yes |
| Plug and Play |
Yes |
| HDCP version |
2.0 |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Cable diameter |
4.8 mm |
| Package weight |
818 g |
| Package width |
235 mm |
| Package depth |
225 mm |
| Package height |
74 mm |
| Package type |
Box |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Package type |
Box |
| Packaging data |
|---|
| Package weight |
818 g |
| Package width |
235 mm |
| Package depth |
225 mm |
| Package height |
74 mm |
| Package type |
Box |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Country of origin |
China |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case gross weight |
302 kg |
| Products per master (outer) case |
36 pc(s) |
| Master (outer) case width |
580 mm |
| Master (outer) case length |
580 mm |
| Master (outer) case height |
310 mm |
| Harmonized System (HS) code |
84733080 |
