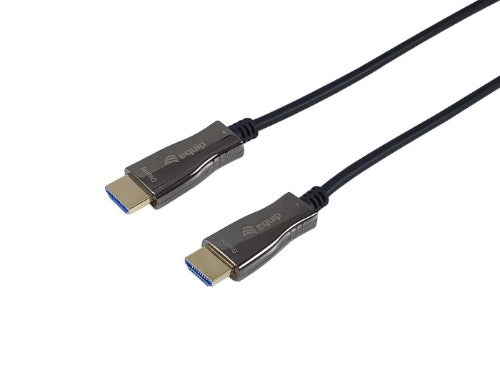

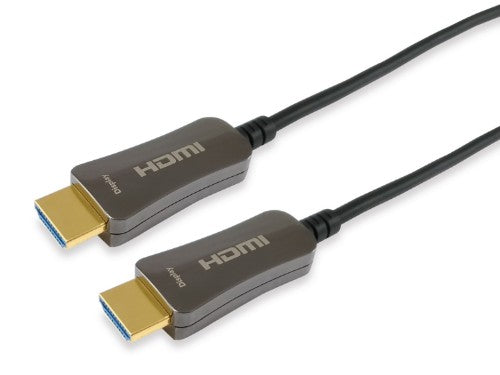

HDMI 2.0 Active Optical Cable AM/AM, 100m
Key Features
- HDMI Male to Male
- HDMI 2.0 compatible
- High Speed with Ethernet
- Supports HDMI Ethernet Channel (HEC)
- Supports video resolutions up to 4K/60Hz
- Bandwidth up to 18Gbps
- Supports 3D display, HDCP2.2 and HDR
- Zinc Alloy housing
- Gold Plated Connectors for high signal quality
- This AOC cable is single way transmissing, can only from Source to Display, please note the direction before using
- The range of active optical leads give you up to 100m of distance
Description
The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
240 Hz |
| HDMI Ethernet channel |
Yes |
| Product colour |
Black |
| Cable length |
100 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Cable material |
Copper |
| HDMI version |
2.0 |
| Bandwidth |
18000 MB/s |
| 3D |
Yes |
| Supported graphics resolutions |
1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160 |
| HDCP |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| HDCP version |
2.2 |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Weight |
2.95 kg |
| Package width |
270 mm |
| Package depth |
90 mm |
| Package height |
270 mm |
| Package type |
Box |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Package type |
Box |
| Packaging data |
|---|
| Package width |
270 mm |
| Package depth |
90 mm |
| Package height |
270 mm |
| Package type |
Box |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Country of origin |
China |
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case gross weight |
15.8 kg |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case width |
370 mm |
| Master (outer) case length |
330 mm |
| Master (outer) case height |
480 mm |
| Harmonized System (HS) code |
8544421900 |
