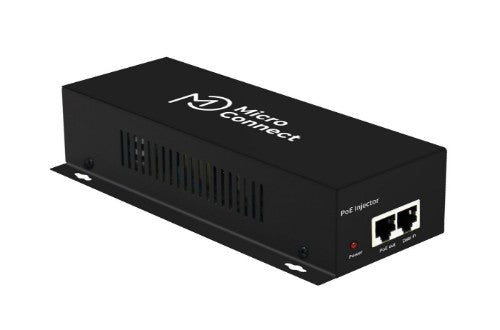

60W 802.3af/at PoE Injector UK
Key Features
- Power protection for input overvoltage/under voltage, output over voltage, and each output over current short circuit protection and other functions
- System reliability：MTBF＞100k hours
- Conducted interference (CE) radiated interference (RE), Accord with EN55032, EN55024 standard
- Active PoE Injector
Description
The POEINJ-60W is a single-port Gigabit PoE (Power over Ethernet) device with two RJ45 ports, one port for the Ethernet data input, another port for the integrated data and power supply output. Since the power supply itself does not have the data switch function, it needs to work together with a Network switch. It mixes the data of the network switch with the power supply, and transmitsthe data and the power supply to the remote powered terminal through the network cable. This can solve the layout restrictions due to the engineering power line. The device can provide PoE power supply to those Ethernet devices conforming to the IEEE802.3af/atPoE++ international standard, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras etc. It provides efficient engineering solutions for locations where power is not available at the remote end or where the use of Ethernet cable power increase system reliability and simplify equipment installation.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3af |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Cable types supported |
Cat5 |
| Power over Ethernet (PoE) voltage |
55 V |
| Features |
|---|
| Plug and Play |
Yes |
| Product colour |
Black |
| Power protection features |
Over current |
| LED indicators |
Yes |
| Networking standards |
IEEE 802.3af |
| Certification |
CE, FCC, UL |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power over Ethernet (PoE) power per port |
60 W |
| Power over Ethernet (PoE) voltage |
55 V |
| AC adapter input voltage |
100 - 240 V |
| Power plug type |
Type G |
| Suitable for use in country/location |
United Kingdom |
| Certificates |
|---|
| Certification |
CE, FCC, UL |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Weight |
380 g |
| Width |
65.8 mm |
| Depth |
33.5 mm |
| Height |
145.5 mm |
| Package weight |
558 g |
| Package depth |
143 mm |
| Package width |
170 mm |
| Package height |
75 mm |
| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
558 g |
| Package depth |
143 mm |
| Package width |
170 mm |
| Package height |
75 mm |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Package width |
170 mm |
| Package height |
75 mm |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Harmonized System (HS) code |
85044090 |
| Compliance certificates |
RoHS |
| Indication |
|---|
| LED indicators |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044090 |
