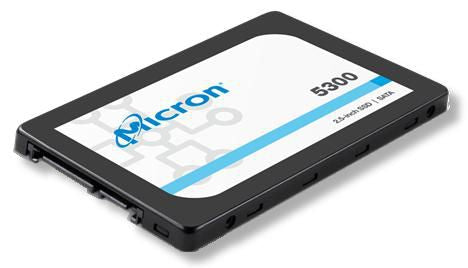

ThinkSystem 2.5" 5300 480GB Mainstream SATA 6Gb Hot Swap SSD
This product guide provides essential presales information to understand the 5300 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
Key Features
- Industry standard 2.5-inch or 3.5-inch form factors
- New generation 96-layer 3D TLC NAND flash memory
- 6 Gbps SATA host interface
- High reliability and enhanced ruggedness
- MTTF of 3 million device hours - 50% more than most drives
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
Description
The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for mixed read/write workloads.This product guide provides essential presales information to understand the 5300 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 480 GB |
| Memory type | 3D TLC NAND |
| Data transmission | |
| Read speed | 540 MB/s |
| Write speed | 460 MB/s |
| Random write (4KB) | 60 IOPS |
| Random read (4KB) | 95 IOPS |
| Write latency | 100 µs |
| Read latency | 175 µs |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 3000000 h |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| Hot-swap | Yes |
| SSD capacity | 480 GB |
| Security algorithms | 256-bit AES |
| Read speed | 540 MB/s |
| Write speed | 460 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 60 IOPS |
| Random read (4KB) | 95 IOPS |
| Mean time between failures (MTBF) | 3000000 h |
| Write latency | 100 µs |
| Read latency | 175 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 3.1 W |
| Power consumption (read) | 2.5 W |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| Hot-swap | Yes |
| SSD capacity | 480 GB |
| Security algorithms | 256-bit AES |
| Read speed | 540 MB/s |
| Write speed | 460 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 60 IOPS |
| Random read (4KB) | 95 IOPS |
| Mean time between failures (MTBF) | 3000000 h |
| Write latency | 100 µs |
| Read latency | 175 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Weight | 70 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Interface | Serial ATA III |
| Hot-swap | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
